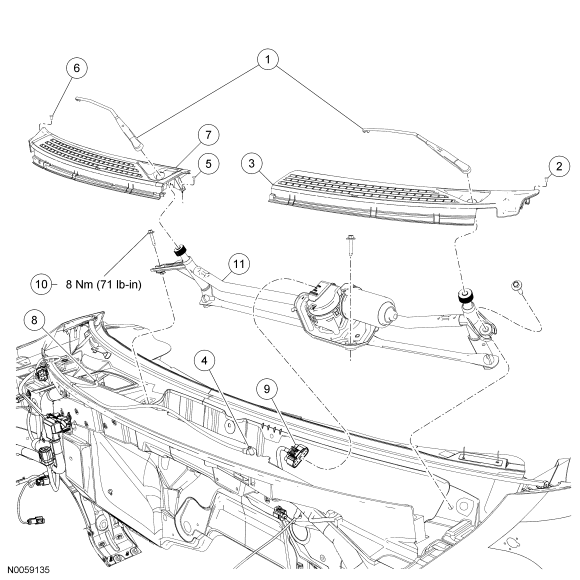

Wiper and Washer System - Exploded View
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 17526 RH/ 17527 LH | Wiper arms |
| 2 | - | Pin-type fastener |
| 3 | 02223 | Left cowl grille panel |
| 4 | 17K605 | Windshield washer hose |
| 5 | - | Cowl panel grille screw |
| 6 | - | Pin-type fastener |
| 7 | 02222 | Right cowl grille panel |
| 8 | 17K605 | Windshield washer hose |
| 9 | 12A581 | Windshield wiper motor electrical connector |
| 10 | N807391 | Windshield wiper assembly bolt (3 required) |
| 11 | 17500 | Windshield wiper assembly |
- For additional information, refer to the procedures in this article.
