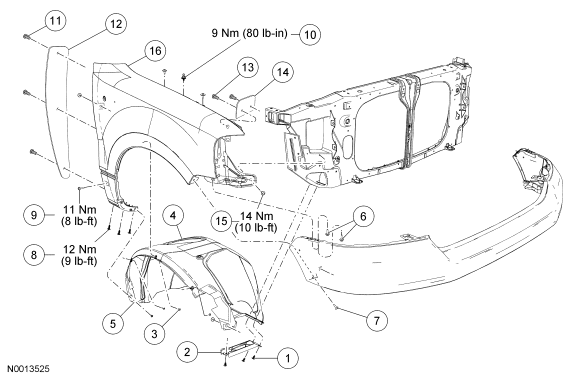

Front End Body Panels - Exploded View
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W705589-S300 | Front bumper cover brace bolts (3 required) |
| 2 | 17E942-A | Front bumper cover brace |
| 3 | N800322-S307 | Fender splash shield screws (5 required) |
| 4 | - | ABS wheel speed sensor electrical connector |
| 5 | 16034/16035 | Fender splash shield (LH/RH) |
| 6 | W505424-S301 | Front bumper cover-to-fender bolts (2 required) |
| 7 | W709176-S300 | Front bumper cover pin-type retainer |
| 8 | W708810-S426 | Lower A-pillar fender bolts (5 required) |
| 9 | W505425-S426 | Lower fender bolts (2 required) |
| 10 | W708785-S426 | Top fender bolt |
| 11 | W705589-S300 | Rear expandable foam baffle pin-type retainers |
| 12 | 16E132A/ 16E133A | Rear expandable foam baffle (LH/RH) |
| 13 | W705589-S300 | Front expandable foam baffle pin-type retainers |
| 14 | 16E133-B | Front expandable foam baffle |
| 15 | W709435-S437 | Magform screw |
| 16 | 16005/16006 | Fender (LH/RH) |
- For additional information, refer to the procedures in this article.
