Power Steering Fluid Cooler: Notes
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |
NOTE:

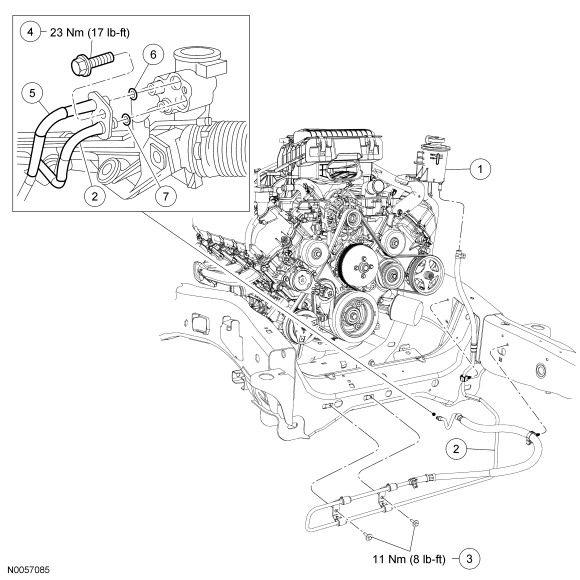

Early build shown, late build similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 3E764 | Power steering fluid reservoir |
| 2 | 3D746 | Power steering fluid cooler |
| 3 | W706599 | Power steering fluid cooler bolts (2 required) |
| 4 | W707622 | Steering line clamp plate bolt |
| 5 | 3A719 | Pressure line |
| 6 | 3F886 | O-ring seal |
| 7 | 3F886 | O-ring seal |
