Accelerator Pedal - Fixed: Notes

WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

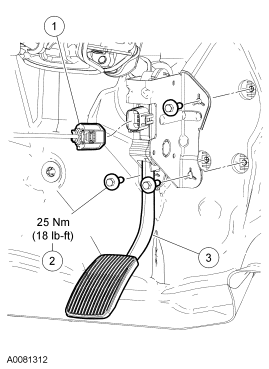

Fig 1: View Of Accelerator Pedal Fixed

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Accelerator pedal electrical connector
2	W709356	Accelerator pedal assembly bolts (3 required)
3	9F836	Accelerator pedal assembly
