Valve Cover - LH: Notes

WARNING: This page is about a different car, the 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
	Remover, Spark Plug Wire	303-106 (T74P-6666-A)

Material

Item	Specification
Silicone Brake Caliper Grease and Dielectric Compound XG-3-A	ESE-M1C171-A

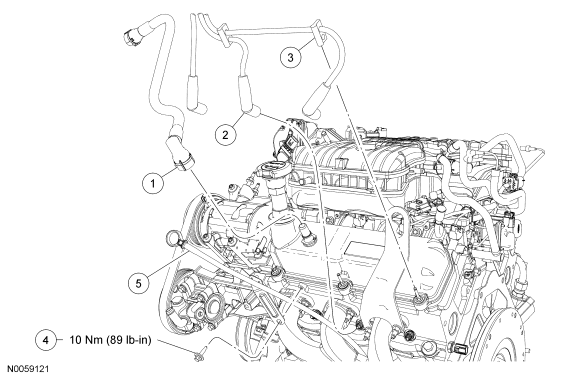

Fig 1: Identifying Valve Cover With Specifications (LH) (1 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	6C342	Crankcase breather hose
2	12286	Spark plug wire
3	12297	Spark plug wire retainer
4	W708650	Oil level indicator tube bolt
5	6754	Oil level indicator

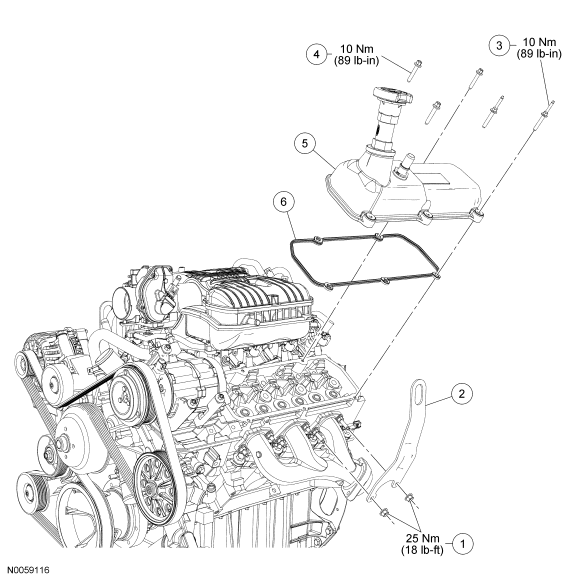

Fig 2: Identifying Valve Cover With Specifications (LH) (2 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N621939	Engine lifting eye nuts (2 required)
2	17A084	Engine lifting eye
3	6C519	Valve cover stud bolt (2 required)
4	6C519	Valve cover bolt (3 required)
5	6A513	LH valve cover
6	6584	LH valve cover gasket
