Upper Intake Manifold: Notes

WARNING: This page is about a different car, the 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Material

Item	Specification
Silicone Brake Caliper Grease and Dielectric Compound XG-3-A	ESE-M1C171-A

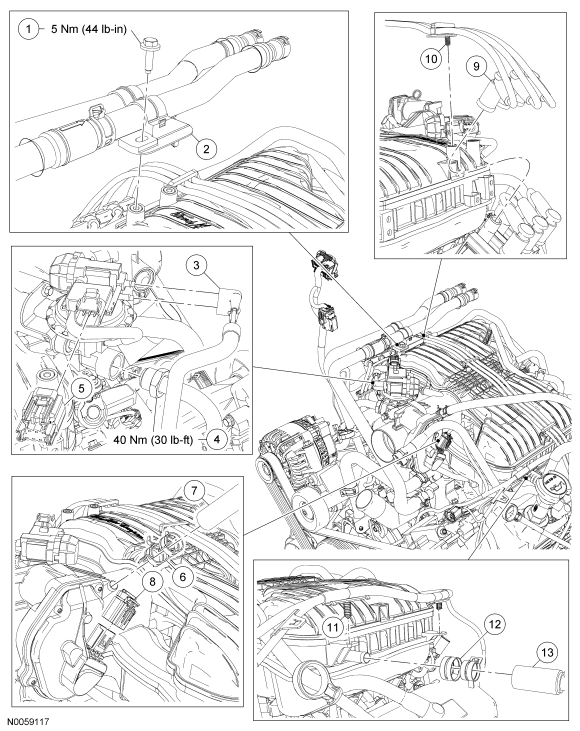

Fig 1: Identifying Upper Intake Manifold With Specifications (1 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N807309	Heater hose bracket bolt (2 required)
2	18K422	Heater hose bracket
3	4E499	Exhaust gas recirculation (EGR) system module vacuum connector
4	9D477	Exhaust manifold-to-EGR system module tube
5	14A464	EGR system module electrical connector
6	W704840	Vapor hose clamp
7	9D289	Vapor hose
8	14A464	Electronic throttle body electrical connector
9	12286	Spark plug wires (3 required)
10	12297	Spark plug wire retainer (2 required)
11	13A506	Wiring harness retainer (5 required)
12	W706142	Brake booster vacuum hose clamp
13	2B432	Brake booster vacuum hose

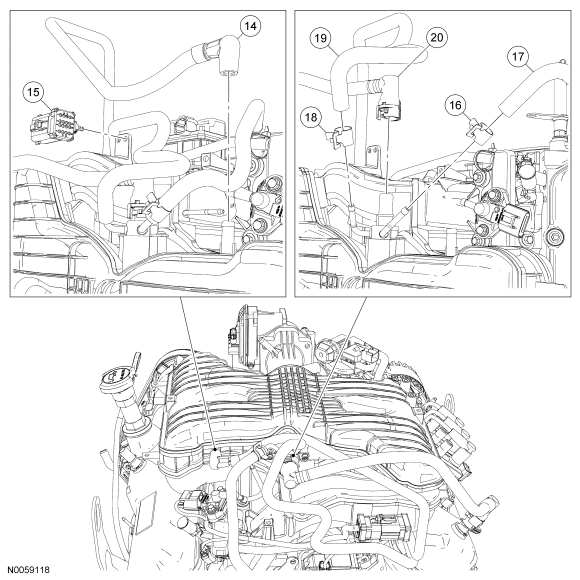

Fig 2: Identifying Upper Intake Manifold (2 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
14	9E499	Intake manifold vacuum hose connector
15	14A163	Fuel charging wiring harness-to-main engine wiring harness electrical connector retainer
16	8287	Heated positive crankcase ventilation (PCV) outlet hose clamp
17	8A520	Heated PCV outlet hose
18	8287	Heated PCV inlet hose clamp
19	18465	Heated PCV inlet hose
20	6758	PCV valve hose

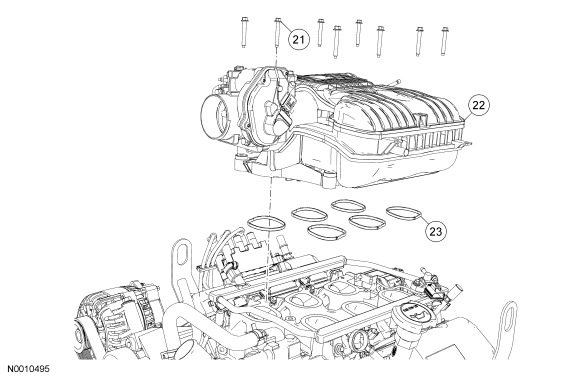

Fig 3: Identifying Upper Intake Manifold (3 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
21	9Y450	Upper intake manifold bolt (8 required)
22	9424	Upper intake manifold
23	9H486	Upper intake manifold gasket (6 required)
