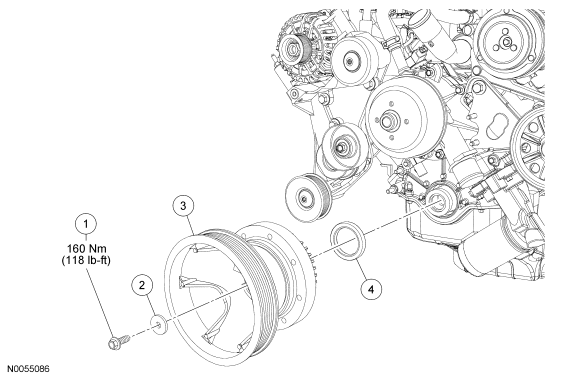

Lower End Components - Exploded View
WARNING: This page is about a different car, the 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
N808089 |
Crankshaft pulley bolt |
| 2 |
N801539 |
Washer |
| 3 |
6B321 |
Crankshaft pulley |
| 4 |
6700 |
Crankshaft front seal |
- For additional information, refer to the procedures in this article.
