Exhaust Manifold - RH: Notes
WARNING: This page is about a different car, the 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

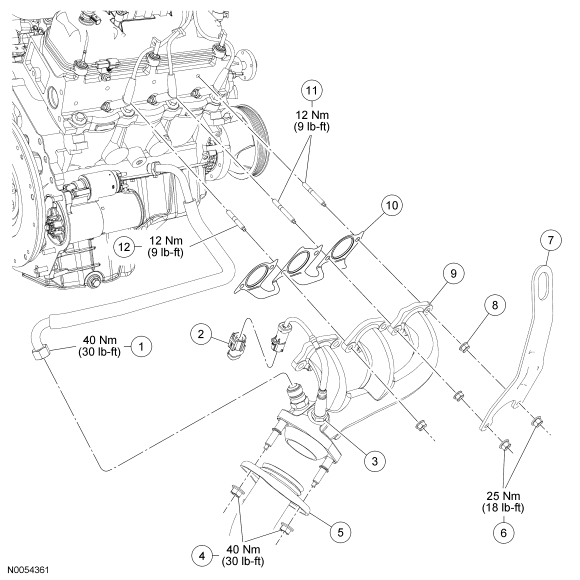

| Item | Part Number | Description |
|---|---|---|
| 1 | 9D477 | Exhaust manifold-to-exhaust gas recirculation (EGR) system module tube |
| 2 | 14A464 | Heated oxygen sensor (HO2S) electrical connector |
| 3 | 9F472 | HO2S |
| 4 | N800419 | Dual converter Y-pipe nuts (2 required) |
| 5 | 5G218 | Dual converter Y-pipe |
| 6 | N621939 | RH engine lifting eye nuts (2 required) |
| 7 | 17A084 | RH engine lifting eye |
| 8 | W701706 | RH exhaust manifold nut (6 required) |
| 9 | 9430 | RH exhaust manifold |
| 10 | 9448 | RH exhaust manifold gasket |
| 11 | W701768 | RH exhaust manifold studs (2 required) |
| 12 | N811313 | RH exhaust manifold stud (4 required) |
