Engine Support Insulators: Notes

WARNING: This page is about a different car, the 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools

Illustration Tool Name Tool Number
GF0002444
 3-Bar Engine Support 303-F073
GF0000160
 Lifting Bracket, Engine 303-050 (T70P-6000)
Material

Item Specification
Threadlock 262
TA-26		 WSK-M2G351-A6

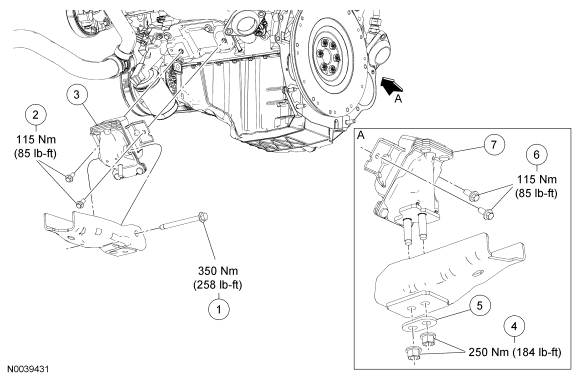

Fig 1: Identifying Engine Support Insulators With Specifications
GF0002445Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W711403 LH engine support insulator through bolt
2 W711282 LH engine support insulator bolts (2 required)
3 6B032 LH engine support insulator
4 W710384 RH engine support insulator nuts (2 required)
5 6D047 RH engine support insulator washer
6 W711282 RH engine support insulator bolts (2 required)
7 6038 RH engine support insulator
