Engine Front Cover: Notes
WARNING: This page is about a different car, the 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Motorcraft Metal Surface Prep ZC-31 |
- |
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |
| Silicone Gasket and Sealant TA-30 |
WSE-M4G323-A4 |
| Silicone Gasket Remover ZC-30 |
- |
| Thread Sealant with PTFE TA-24 |
WSK-M2G350-A2 |

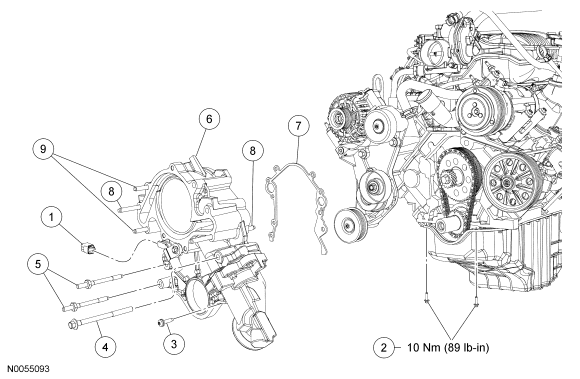

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Crankshaft position (CKP) sensor electrical connector |
| 2 | N804601 | Oil pan bolts (2 required) |
| 3 | W701621 | Cap screw |
| 4 | N804839 | Bolt |
| 5 | N805112 | Stud bolts |
| 6 | 6019 | Engine front cover |
| 7 | 6020 | Engine front cover gasket |
| 8 | N804853 | Studs (2 required) |
| 9 | N805757 | Studs (2 required) |
