Fuel Rail Pressure and Temperature Sensor - 5.4L (3V): Notes
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |
WARNING:
Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related components. Highly flammable mixtures are always present and can be ignited. Failure to follow these instructions may result in personal injury.

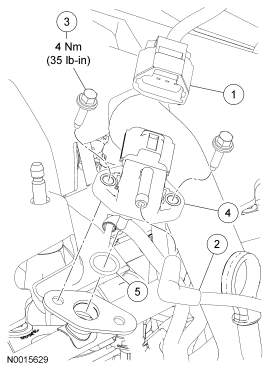

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Fuel rail pressure and temperature sensor electrical connector |
| 2 | 9E498 | Fuel rail pressure and temperature sensor vacuum connector |
| 3 | N808874 | Fuel rail pressure and temperature sensor bolt (2 required) |
| 4 | 9G756 | Fuel rail pressure and temperature sensor |
| 5 | - | Fuel rail pressure and temperature sensor O-ring seal |
