Cooling Fan - Blade, Clutch and Shroud: Notes
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration |
Tool Name |
Tool Number |
|
|
Holding Wrench, Fan Pulley |
303-239 (T84T-6312-C) |
|
|
Wrench, Fan Clutch Nut |
303-214 (T83T-6312-B) |
|
|
Wrench, Fan Clutch Nut |
303-240 (T84T-6312-D) |
Courtesy of FORD MOTOR CO.

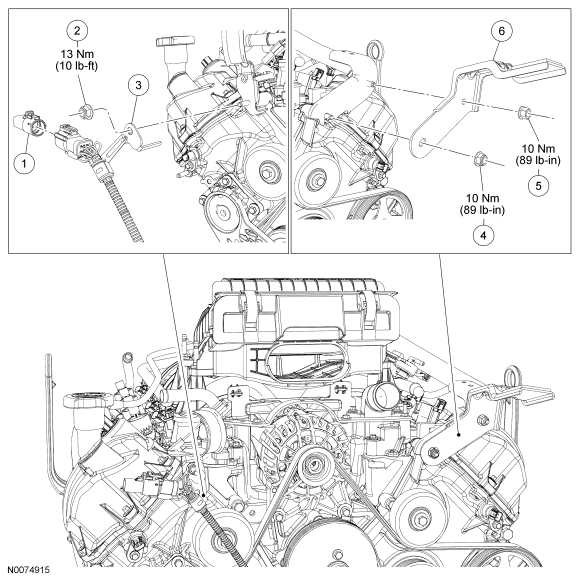

| Item |
Part Number |
Description |
| 1 |
14A624 |
Electronic cooling fan clutch electrical connector - 4.6L (2V) and 5.4L (3V) (part of 12B637) |
| 2 |
W520112 |
Electronic cooling fan clutch wiring harness nut - 4.6L (2V) and 5.4L (3V) |
| 3 |
8C290 |
Electronic cooling fan clutch wiring harness - 4.6L (2V) and 5.4L (3V) |
| 4 |
W520112 |
Air cleaner intake pipe bracket lower nut - 5.4L (3V) |
| 5 |
N620481 |
Air cleaner intake pipe bracket upper nut - 5.4L (3V) |
| 6 |
9G792 |
Air cleaner intake pipe support bracket - 5.4L (3V) |
Courtesy of FORD MOTOR CO.

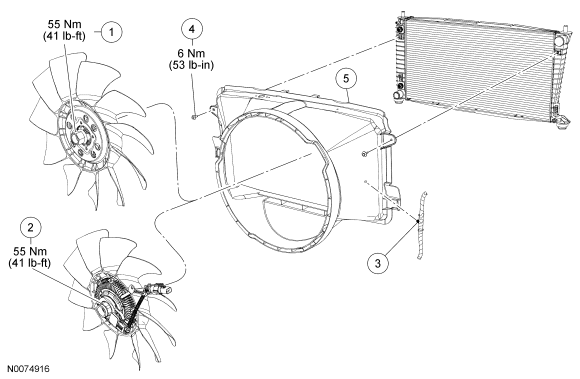

| Item |
Part Number |
Description |
| 1 |
8A616 |
Cooling fan assembly - 4.2L |
| 2 |
8A623 |
Cooling fan assembly - 4.6L (2V) and 5.4L (3V) |
| 3 |
14A163 |
Battery cable harness retainer - 4.6L (2V) and 5.4L (3V) (part of 14B060) |
| 4 |
N807658 |
Cooling fan shroud bolt (2 required) |
| 5 |
8146 |
Cooling fan shroud |
