Block Heater: Notes

WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Material

Item Specification
Motorcraft Metal Surface Prep
ZC-31
-

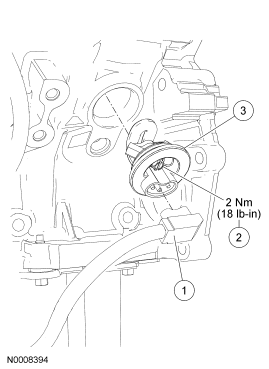

Fig 1: Identifying Block Heater Components
GF0002816Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A199 Block heater electrical connector
2 - Block heater retaining screw (part of 6A051)
3 6A051 Block heater
