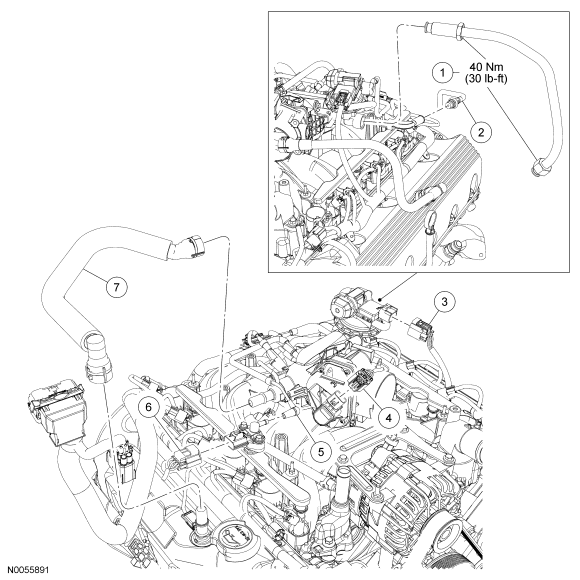

Fuel Rail and Fuel Injector - Exploded View
WARNING: This page is about a different car, the 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
9D477 |
Exhaust gas recirculation (EGR) system module tube |
| 2 |
9J274 |
Fuel tube spring lock coupling |
| 3 |
- |
EGR system module electrical connector (part of 12B637) |
| 4 |
- |
Electronic throttle control electrical connector (part of 12B637) |
| 5 |
- |
Fuel rail pressure and temperature sensor vacuum connector (part of 9E498) |
| 6 |
- |
Fuel rail pressure and temperature sensor electrical connector (part of 12B637) |
| 7 |
6K817 |
Positive crankcase ventilation (PCV) tube |

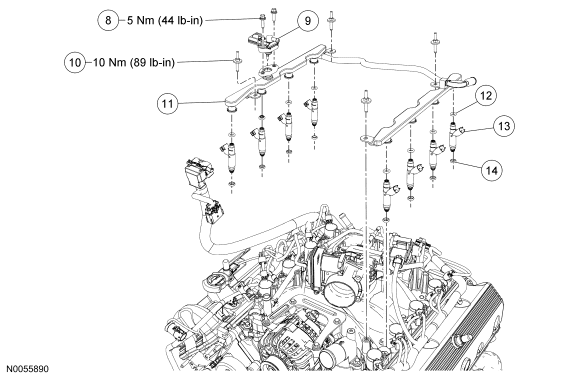

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 8 |
N806423 |
Fuel rail pressure and temperature sensor bolt (2 required) |
| 9 |
- |
Fuel rail pressure and temperature sensor |
| 10 |
N804394 |
Fuel rail stud bolt (4 required) |
| 11 |
9F792 |
Fuel rail |
| 12 |
- |
Fuel injector-to-fuel rail O-ring seal (8 required) |
| 13 |
9F593 |
Fuel injector (8 required) |
| 14 |
- |
Fuel injector-to-intake manifold O-ring seal (8 required) |
- For additional information, refer to the procedures in this information.
