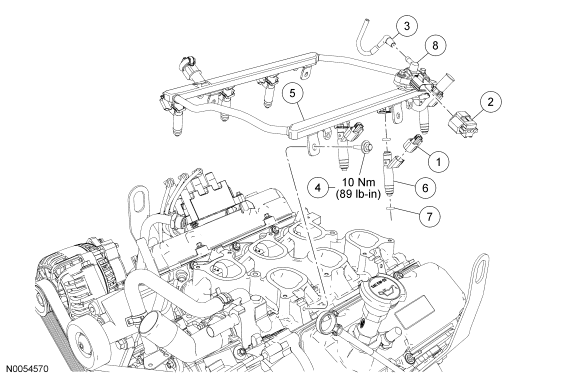

Fuel Rail and Fuel Injector - Exploded View
WARNING: This page is about a different car, the 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Fuel injector electrical connector (part of 9D390) (6 required) |
| 2 | 14A464 | Fuel rail pressure sensor electrical connector (part of 9D390) |
| 3 | 9E498 | Fuel rail pressure sensor vacuum connector |
| 4 | W708650 | Fuel rail bolts (4 required) |
| 5 | 9F792 | Fuel rail |
| 6 | 9F593 | Fuel injector (6 required) |
| 7 | 9229 | Fuel injector O-ring (12 required) |
| 8 | 9G756 | Fuel rail pressure and temperature sensor |
WARNING:
Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related components. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in personal injury.
WARNING:
Fuel in the fuel system remains under high pressure even when the engine is not running. Before working on or disconnecting any of the fuel lines or fuel system components, the fuel system pressure must be relieved. Failure to follow these instructions may result in personal injury.
- For additional information, refer to the procedures in this article.
