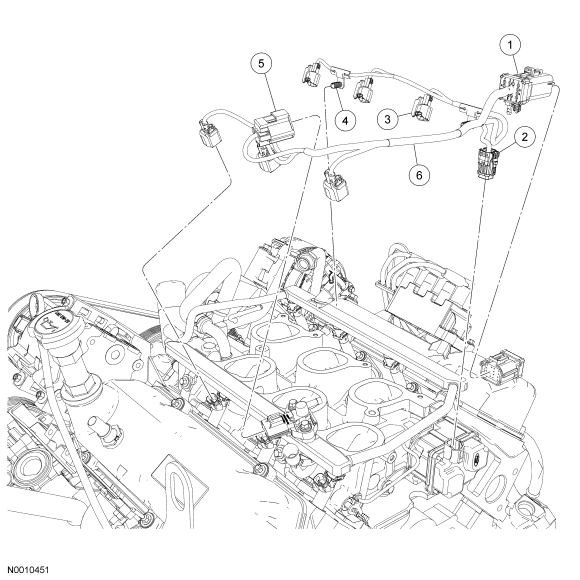

Fuel Charging Wiring Harness: Notes
WARNING: This page is about a different car, the 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A624 | Fuel charging wiring harness-to-main engine wiring harness electrical connector |
| 2 | 14489 | Intake manifold runner control actuator electrical connector |
| 3 | 14A464 | Fuel injector electrical connectors (6 required) |
| 4 | 14A163 | Wiring harness retainers (2 required) |
| 5 | 14A464 | Fuel rail pressure sensor electrical connector |
| 6 | 9D930 | Fuel charging wiring harness |
