Starter Motor - 4.2L: Notes

WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

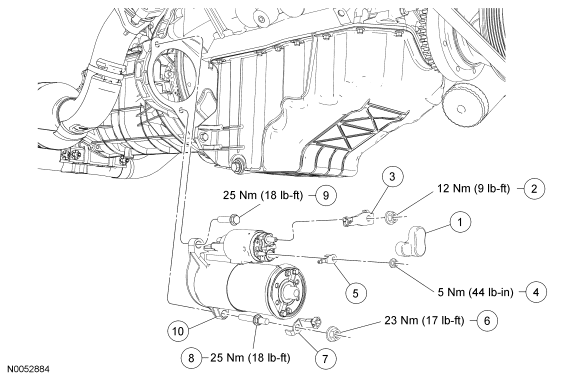

Fig 1: Identifying Starter Motor With Specifications (4.2L)
GF0002883Courtesy of FORD MOTOR CO.
Item Part Number Description
1 11N087 Terminal cover
2 W706414 Starter solenoid B-terminal nut
3 14463 Starter solenoid B-terminal eyelet
4 W705790 Starter solenoid S-terminal nut
5 14463 Starter solenoid S-terminal eyelet
6 11A116 Starter motor ground cable nut
7 14464 Starter motor ground cable eyelet
8 11A116 Starter motor stud bolt
9 382747-S437 Starter motor bolt
10 11000 Starter motor
