Intake Manifold Assembly: Notes

WARNING: This page is about a different car, the 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Material

Item	Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent	WSS-M2C930-A

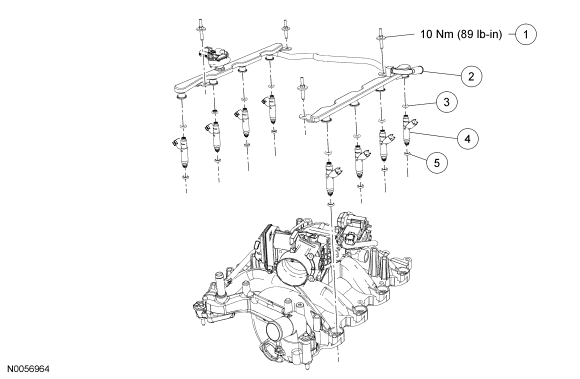

Fig 1: Identifying Intake Manifold Assembly Components (1 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N804394	Fuel rail stud bolt (4 required)
2	9F792	Fuel rail
3	-	Fuel injector-to-fuel rail O-ring seal (8 required)
4	9F593	Fuel injector (8 required)
5	-	Fuel injector-to-intake manifold O-ring seal (8 required)

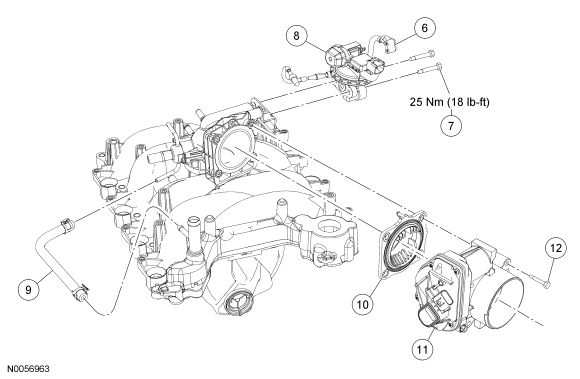

Fig 2: Identifying Intake Manifold Assembly Components (2 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
6	9D475	Exhaust gas recirculation (EGR) system module vacuum connector
7	W701232	EGR system module bolt (2 required)
8	9D475	EGR system module
9	18465	Positive crankcase ventilation (PCV) coolant hose
10	9E930	Throttle body (TB) gasket
11	9F991	TB
12	W500302	TB bolt (4 required)

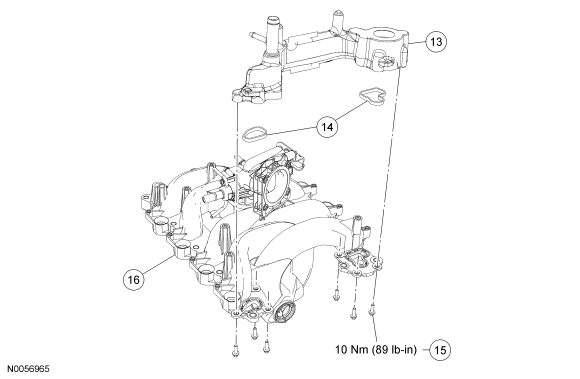

Fig 3: Identifying Intake Manifold Assembly Components (3 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
13	9J447	Coolant bypass tube
14	9461	Coolant bypass tube gaskets (2 required)
15	N807071	Coolant bypass tube bolt (6 required)
16	9424	Intake manifold
