Cylinder Head: Notes
WARNING: This page is about a different car, the 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Compressor, Valve Spring | 303-452 (T93P-6565-AR) | |
| Aligner, Camshaft | 303-380 (T91P-6256-A) | |
| Aligner, Camshaft Pulley | 303-413 (T92P-6256-A) | |
| Compressor Spacer, Valve Spring | 303-382 (T91P-6565-AH) | |
| Installer, Valve Stem Oil Seal | 303-383 (T91T-6571-A) |
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |
NOTE:
LH shown, RH similar.

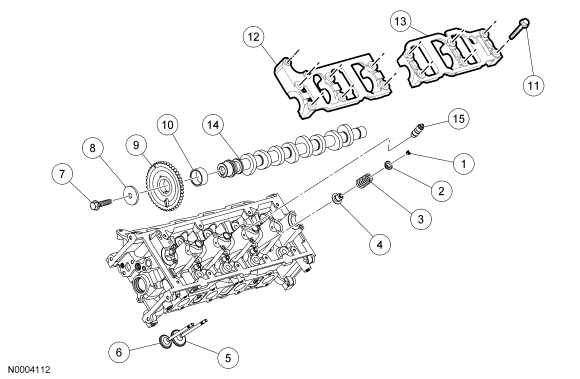

| Item | Part Number | Description |
|---|---|---|
| 1 | 6518 | Valve spring retainer key (16 required) |
| 2 | 6514 | Valve spring retainer (8 required) |
| 3 | 6513 | Valve spring (8 required) |
| 4 | 6A517 | Valve stem seal (8 required) |
| 5 | 6505 | Intake valve (4 required) |
| 6 | 6507 | Exhaust valve (4 required) |
| 7 | N811085 | Camshaft sprocket bolt |
| 8 | N806164 | Camshaft sprocket bolt washer |
| 9 | 6256 | Camshaft sprocket |
| 10 | 6265 | Camshaft sprocket spacer |
| 11 | N807834 | Camshaft bearing cap bolt (13 required) |
| 12 | W705438 | Camshaft bearing cap |
| 13 | 6B277 | Camshaft bearing cap |
| 14 | 6A271 | Camshaft |
| 15 | 6C501 | Hydraulic lash adjuster (8 required) |
