Driveshaft - Rear, One-Piece: Notes
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item |
Specification |
Threadlock and Sealer
TA-25 |
WSK-M2G351-A5 |
Courtesy of FORD MOTOR CO.

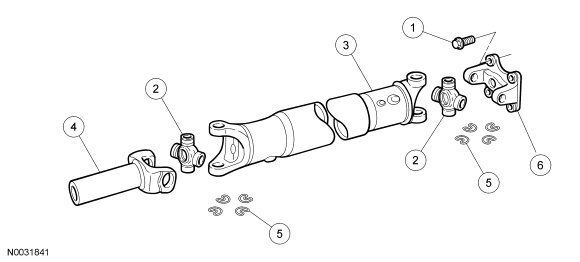

| Item |
Part Number |
Description |
| 1 |
N800594-S100 |
Driveshaft flange-to-pinion bolt |
| 2 |
4635 |
Universal Joint Assembly |
| 3 |
4602 |
Driveshaft assembly |
| 4 |
4841 |
Driveshaft slip yoke |
| 5 |
- |
Snap rings (part of 4635) |
| 6 |
4866 |
Driveshaft flange yoke |
