Axle Carrier Bushing: Notes
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Installer Front Axle Mounting Bushing Drawbolt | 205-374 (T96T-5638-H) | |
| Installer, Front Differential Mounting Bushing | 204-187 (T95T-5638-AH) | |
| Installer, Wheel Hub Dust Seal | 205-289 (T89P-1249-A) | |
| Remover, Front Axle Mounting Bushing Cup | 205-371 (T96T-5638-E) | |
| Remover, Front Axle Mounting Bushing | 205-376 (T96T-5638-K) | |
| Remover, Front Differential Housing Bushing | 204-186 (T95T-5638-AH) | |
| Remover/Installer, Front Differential Housing Bushing | 205-527/1 |

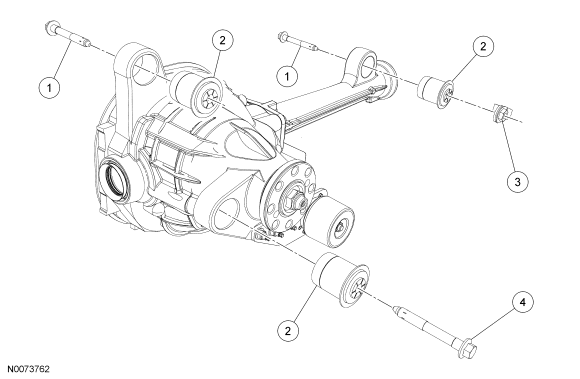

| Item | Part Number | Description |
|---|---|---|
| 1 | W707881-S | Axle mounting bolts (2 required) |
| 2 | 5638 | Axle mounting bushings (3 required) |
| 3 | W706348 | Axle mounting bolt flagnut |
| 4 | W707881-S | Axle mounting bolt |
