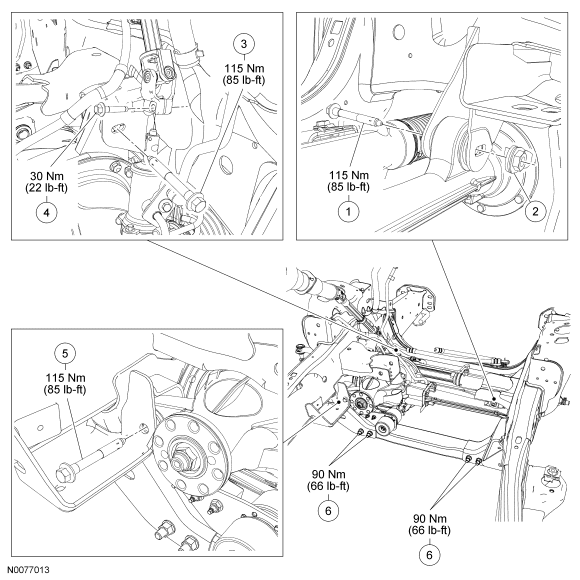

Axle Assembly: Notes
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W707881-S |
Axle support bolt |
| 2 |
W706348 |
Axle support flagnut |
| 3 |
W707881-S |
Axle support bolt |
| 4 |
N808684-S |
Steering column coupler bolt |
| 5 |
W707881-S |
Axle support bolt |
| 6 |
636893 |
Crossmember bolts (4 required) |
