Drive Pinion Flange and Seal: Notes
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Holding Fixture, Drive Pinion Flange | 205-126 (T78P-4851-A) | |
| Installer, Drive Pinion Flange | 205-002 (TOOL-4858-E) | |
| Installer, Drive Pinion Oil Seal | 205-133 (T79P-4676-A) | |
| 2-Jaw Puller | 205-D072 (D97L-4221-A) or equivalent |
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 80W-90 Premium Rear Axle Lubricant XY-80W90-QL (US); CXY-80W90-1L (Canada); (Model 60/70 axles) |
WSP-M2C197-A |

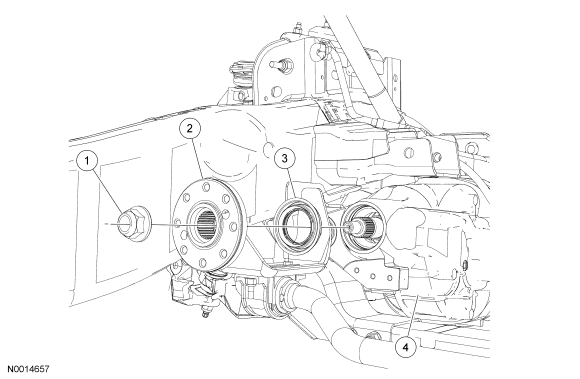

| Item | Part Number | Description |
|---|---|---|
| 1 | 389546 | Pinion nut and washer |
| 2 | 4858 | Pinion flange |
| 3 | 3N134 | Drive pinion oil seal |
| 4 | 3C202 | Axle housing |
