Differential Case: Notes
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 80W90 Premium Rear Axle Lubricant XY-80W90-QL (US); CXY-80W90-1L (Canada) |
WSP-M2C197-A |
| Threadlock and Sealer TA-25 |
WSK-M2G351-A5 |

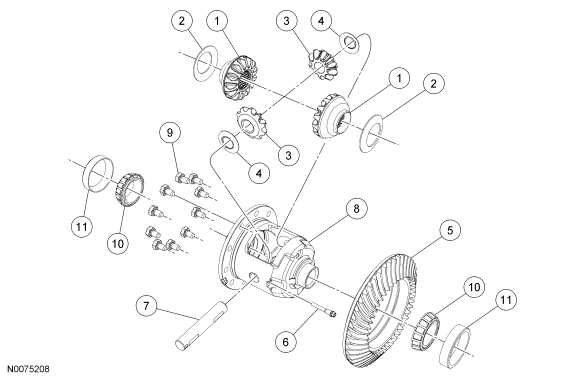

| Item | Part Number | Description |
|---|---|---|
| 1 | 4236 | Differential side gears |
| 2 | 4228 | Differential side gear thrust washers |
| 3 | 4215 | Differential pinion gears |
| 4 | 4230 | Differential pinion thrust washers |
| 5 | 4209 | Differential ring gear |
| 6 | 4241 | Differential pinion shaft lock bolt |
| 7 | 4211 | Differential pinion shaft |
| 8 | 4204 | Differential case |
| 9 | 4216 | Differential ring gear bolt (10 required) |
| 10 | 4221 | Differential bearings (2 required) |
| 11 | 4222 | Differential bearing cups (2 required) |
