Exterior Lights

WARNING: This page is about a different car, the 1993 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.

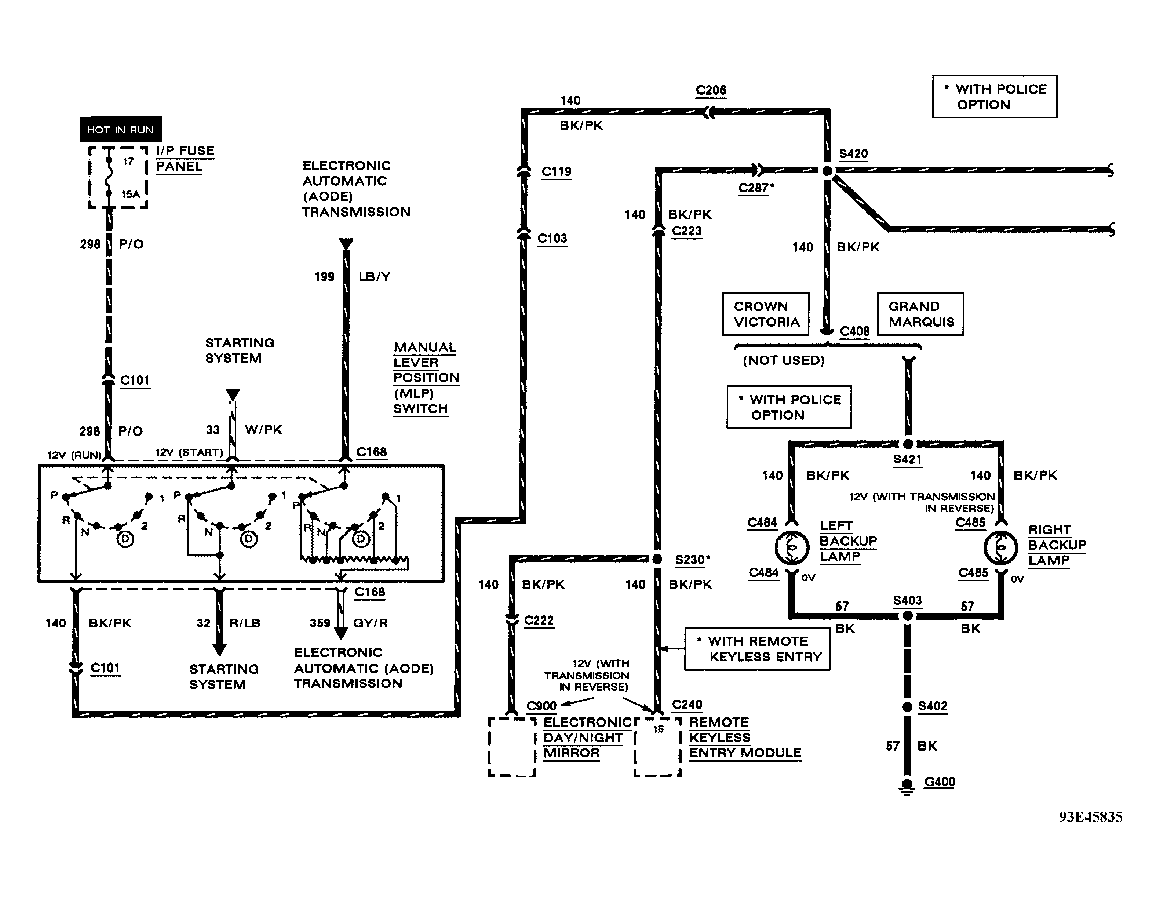

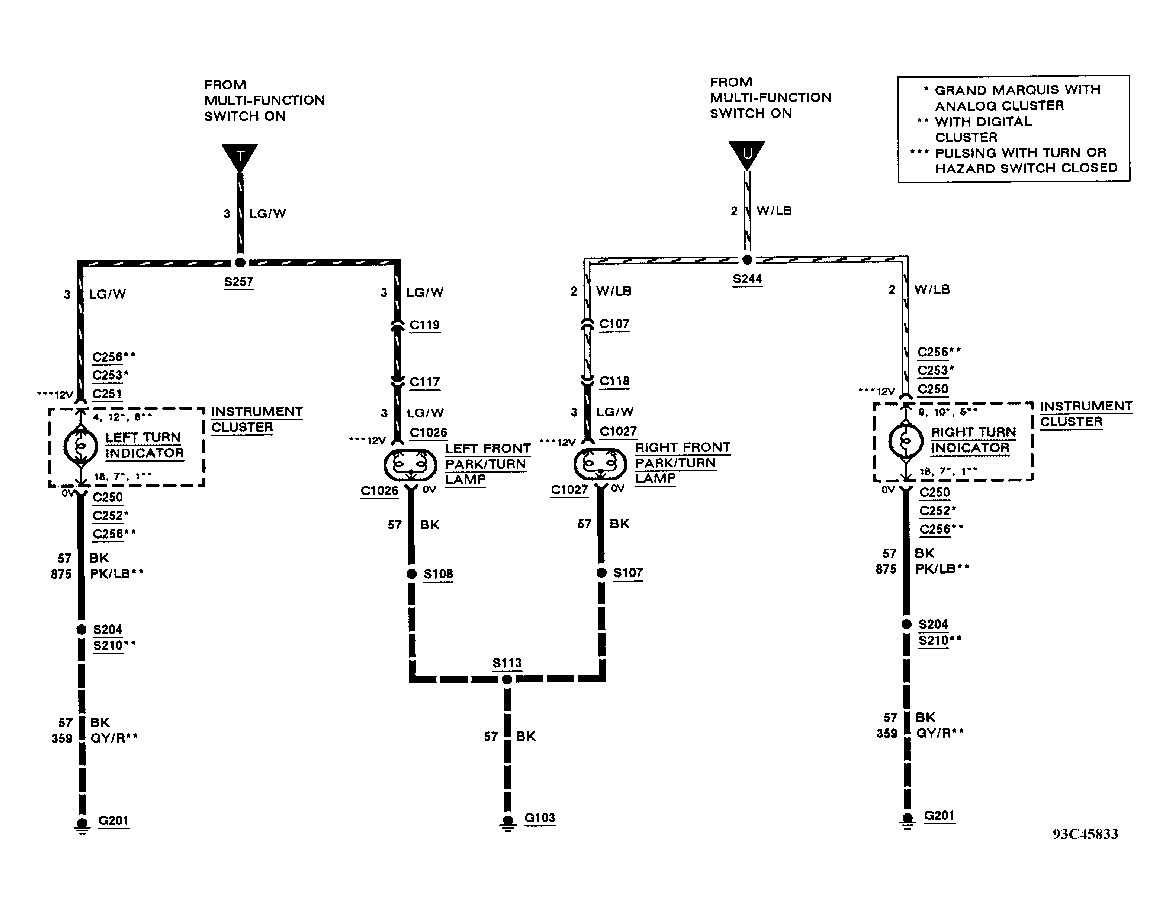

Fig 1: Exterior Lights (1 Of 10)

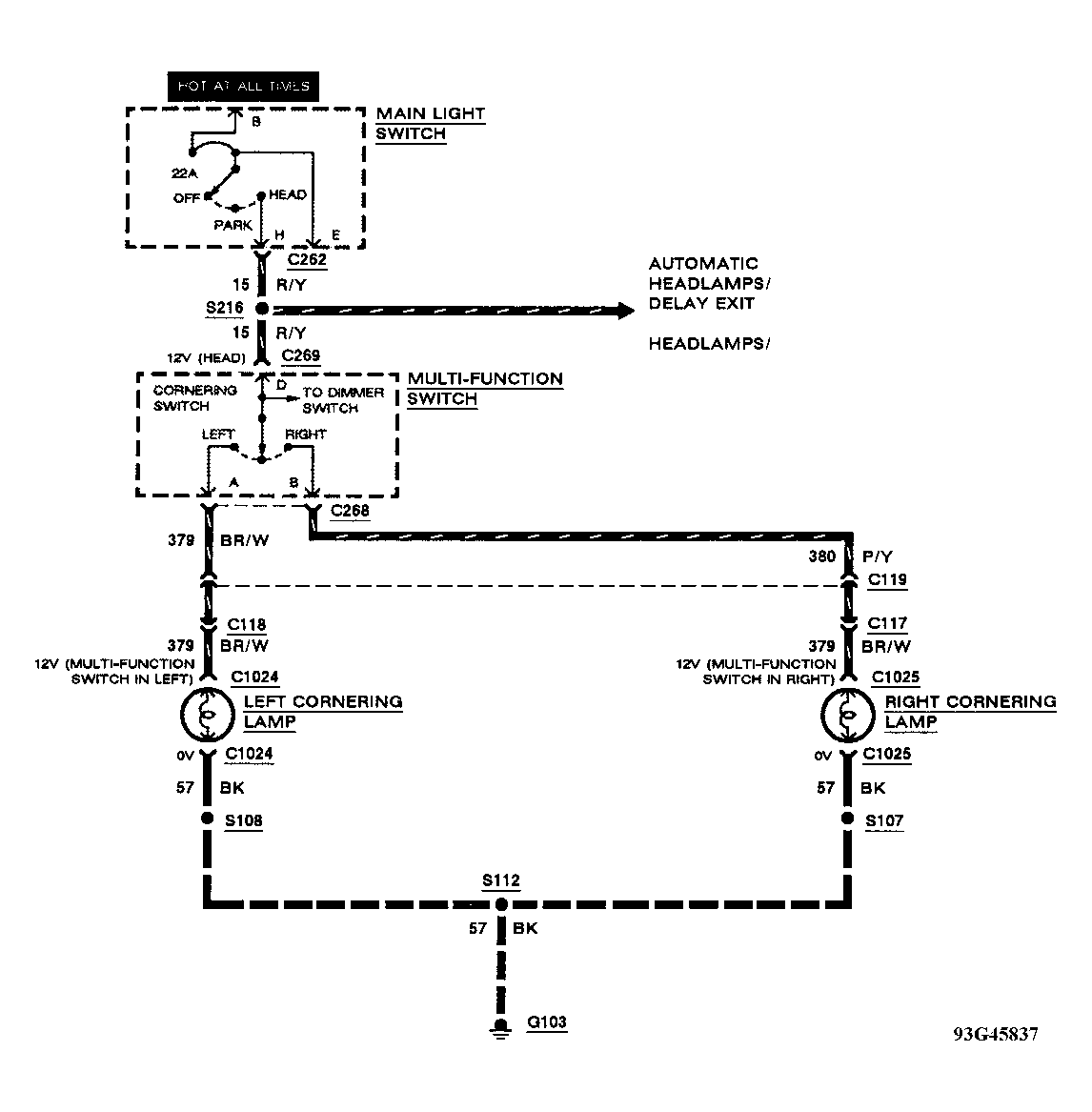

Fig 2: Exterior Lights (2 Of 10)

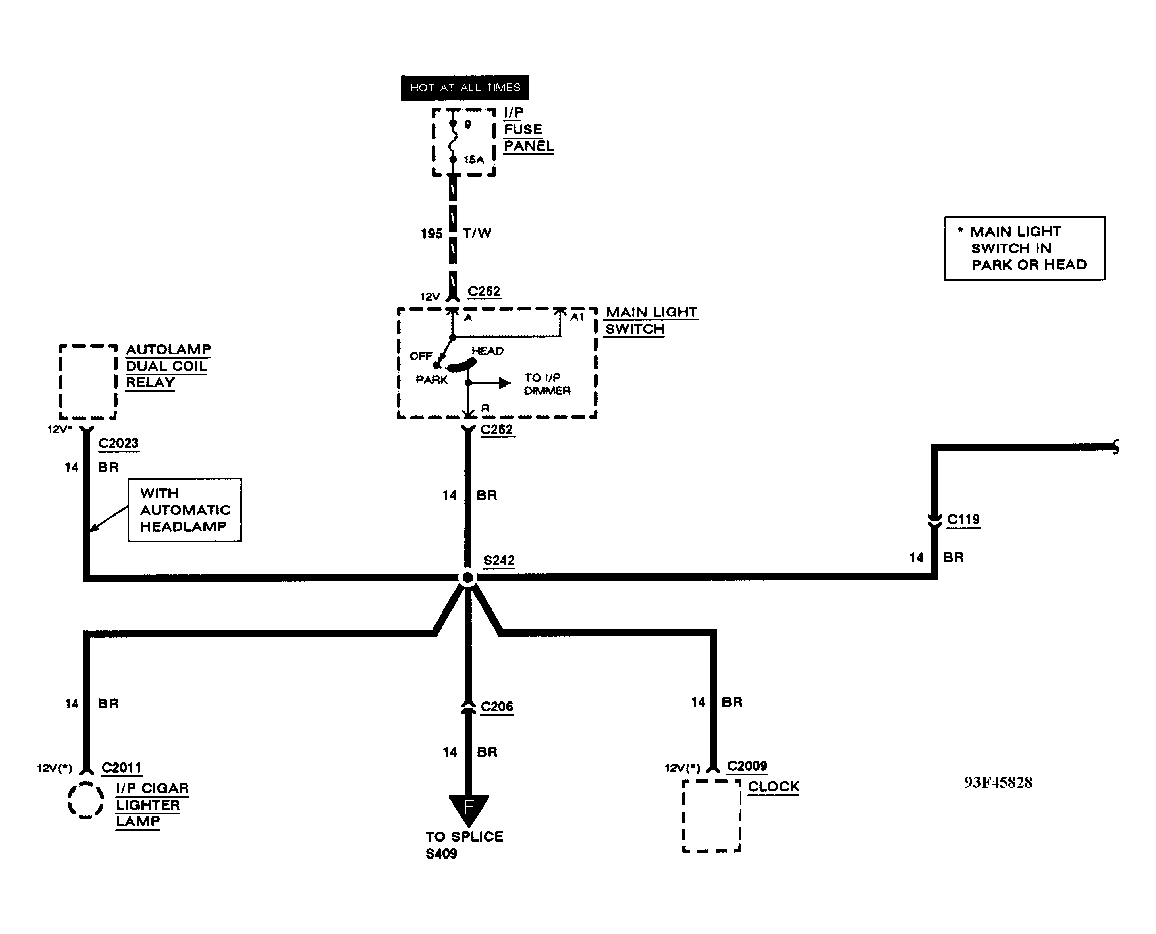

Fig 3: Exterior Lights (3 Of 10)

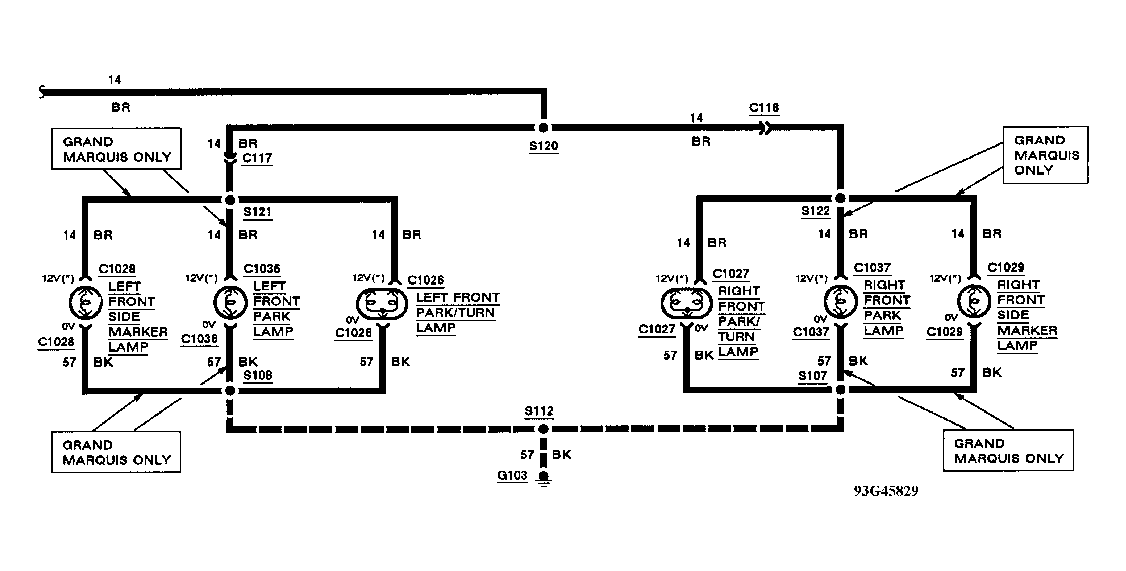

Fig 4: Exterior Lights (4 Of 10)

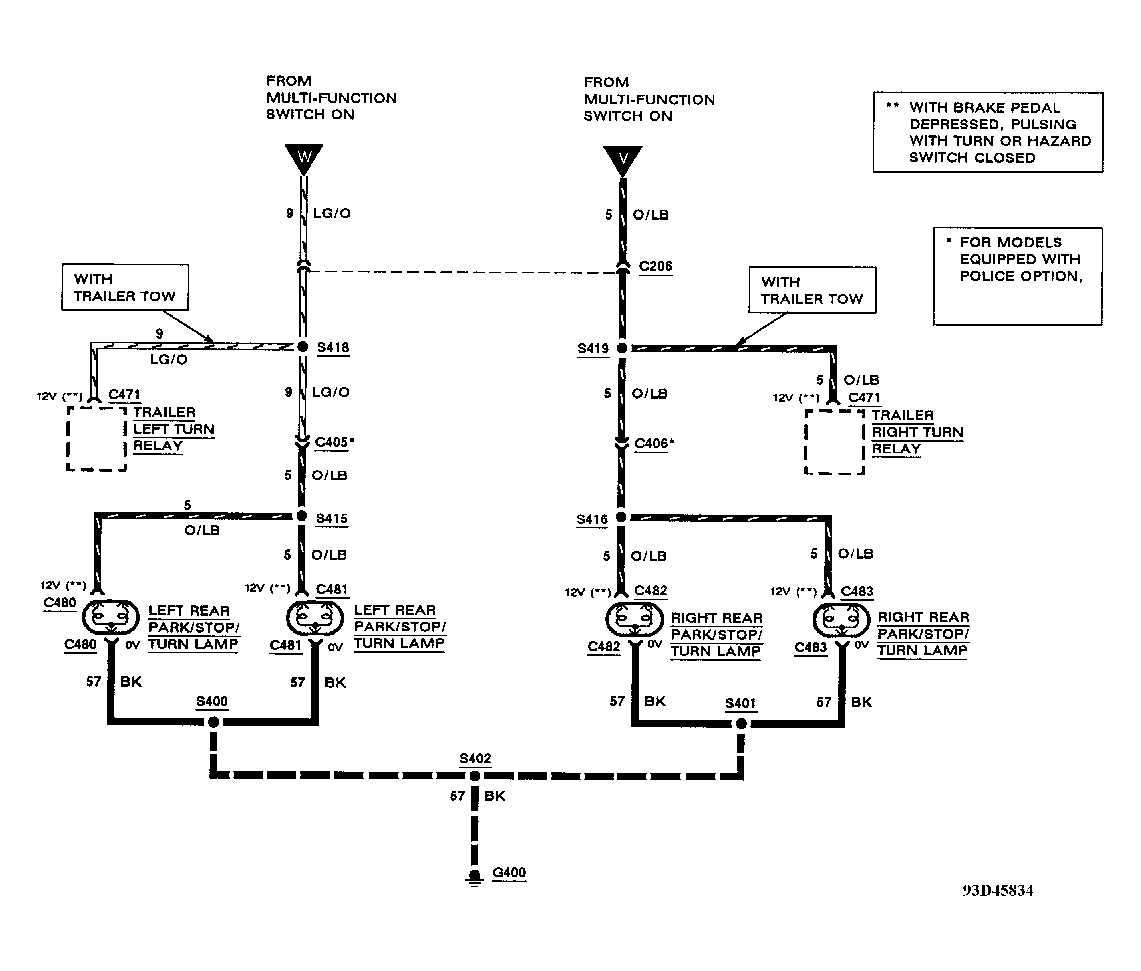

Fig 5: Exterior Lights (5 Of 10)

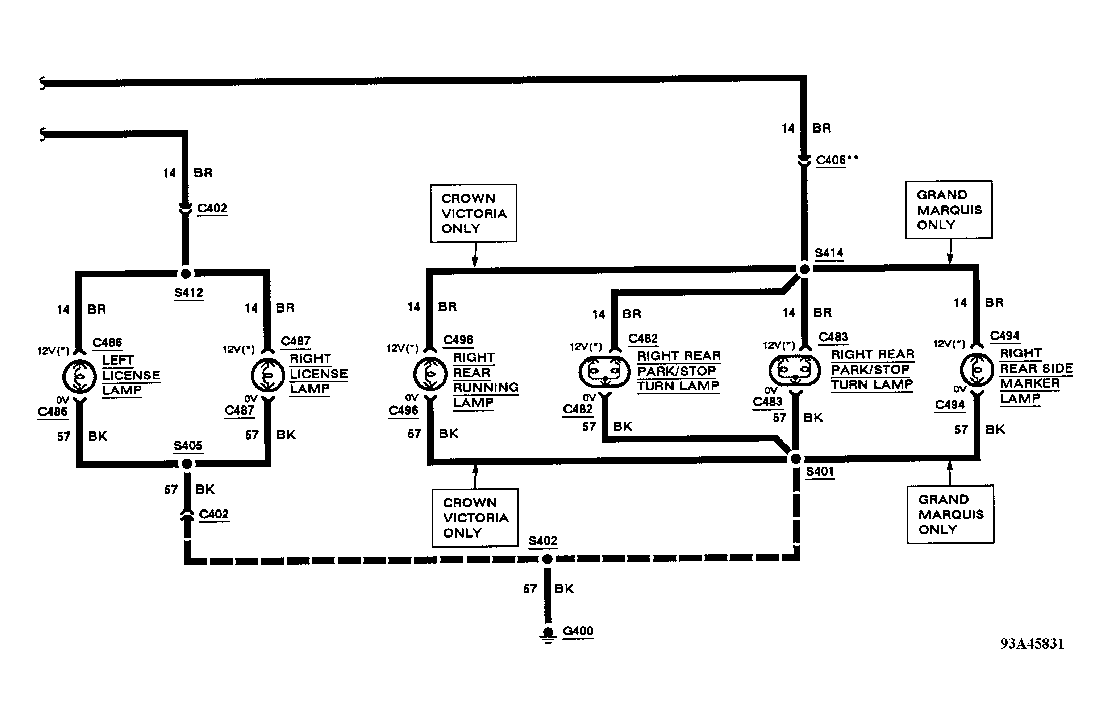

Fig 6: Exterior Lights (6 Of 10)

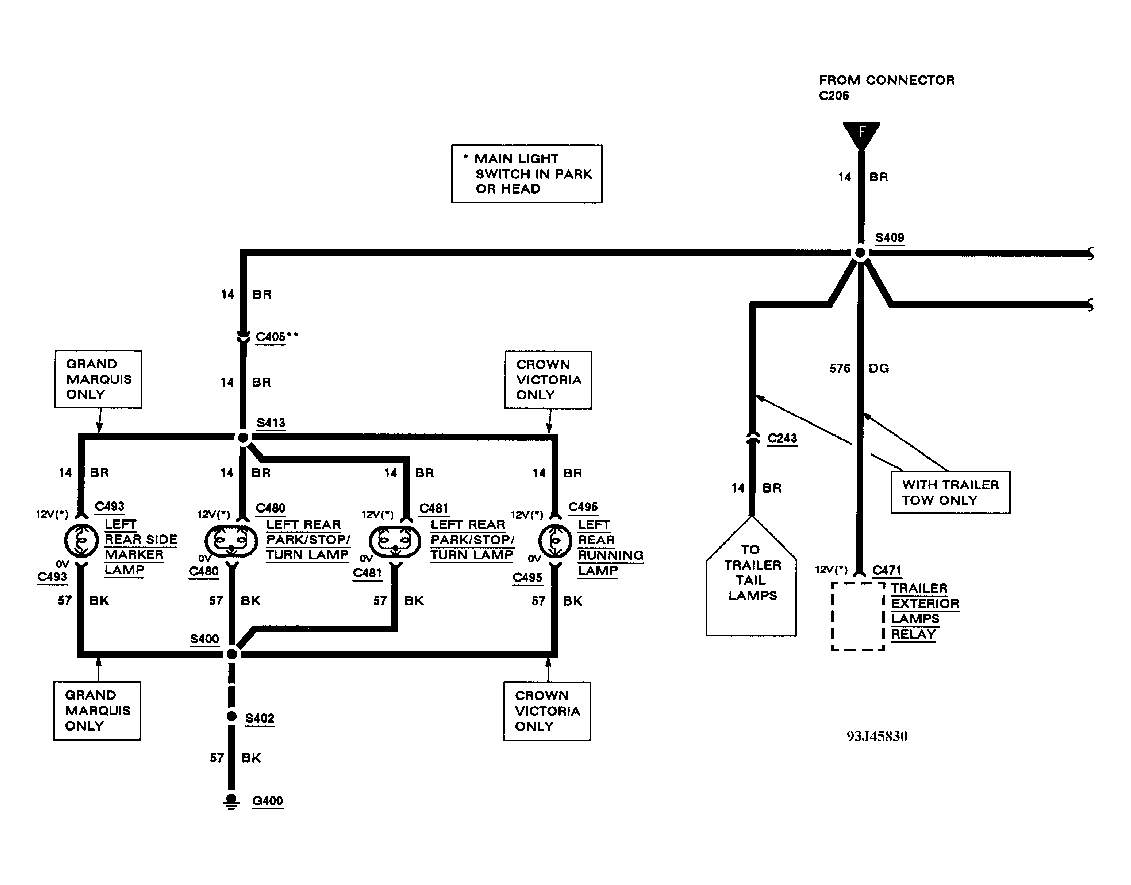

Fig 7: Exterior Lights (7 Of 10)

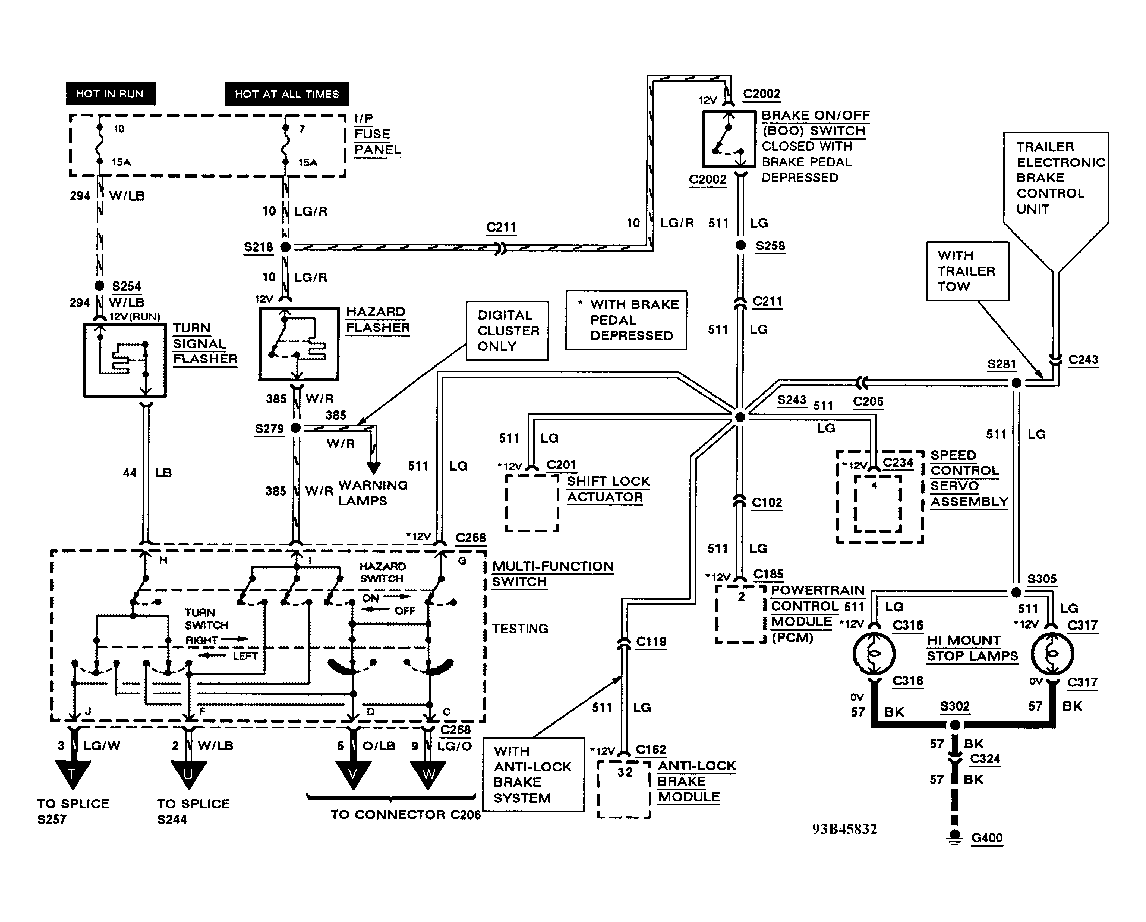

Fig 8: Exterior Lights (8 Of 10)

Fig 9: Exterior Lights (9 Of 10)

Fig 10: Exterior Lights (10 Of 10)
