WARNING: This page is about a different car, the 1993 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.

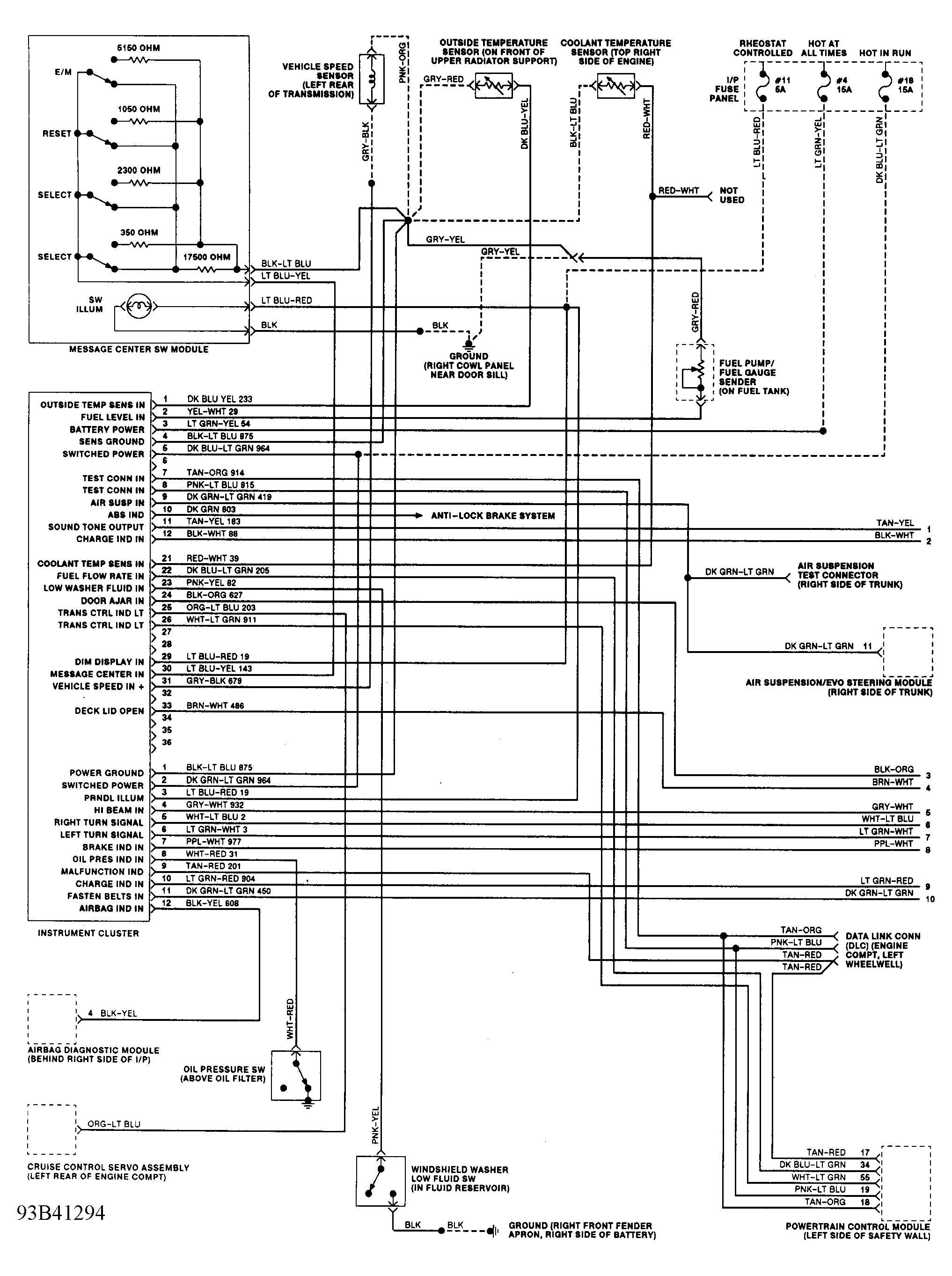

Fig 1: Electronic Instrument Cluster Wiring Diagram (1 Of 2)

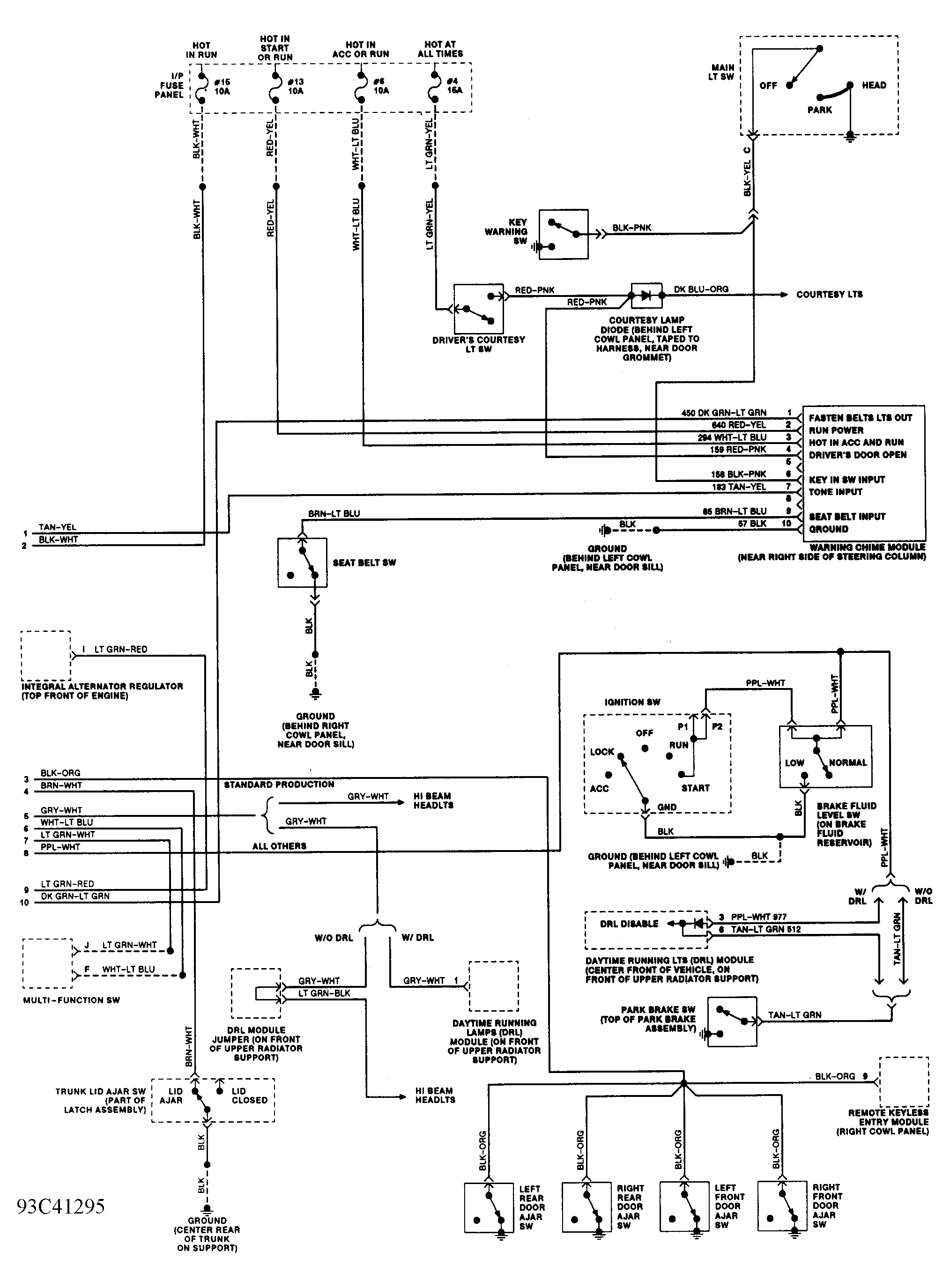

Fig 2: Electronic Instrument Cluster Wiring Diagram (2 Of 2)
