Drive Pinion Flange and Drive Pinion Seal: Notes
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Holding Fixture, Drive Pinion Flange | 205-126 (T78P-4851-A) | |
| Installer, Drive Pinion Flange | 205-002 (TOOL-4858-E) | |
| Installer, Drive Pinion Oil Seal | 205-208 (T83T-4676-A) | |
| 2-Jaw Puller | 205-D072 (D97L-4221-A) or equivalent |
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL (US); CXY-75W140-1L (Canada) |
WSL-M2C192-A |
| Premium Long-Life Grease XG-1-C or XG-1-K (Canada CXG-1-C) |
ESA-M1C75-B |

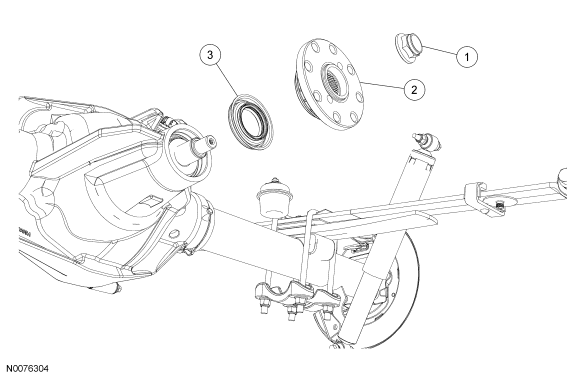

| Item | Part Number | Description |
|---|---|---|
| 1 | 389546-S100 | Drive pinion nut |
| 2 | 4851 | Drive pinion flange |
| 3 | 4676 | Drive pinion oil seal |
