Bumper Cover - Front

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

    All vehicles

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the 6 pin-type retainers (3 each side).
  3. Remove the 8 fender splash shield screws (4 each side).
  4. Remove the 4 air deflector bolts.
    Fig 1: Locating Air Deflector Bolts
    G04683804Courtesy of FORD MOTOR CO.

    5. Zephyr only

  5. Remove the 5 bolts from the top of the radiator grille.

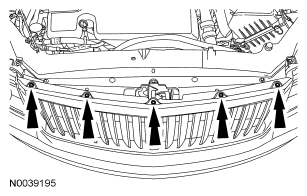

    Fig 2: Locating Radiator Grille Bolts
    G04683805Courtesy of FORD MOTOR CO.

    6. Fusion and Milan only

  6. Remove the 2 bolts and the 2 pin-type retainers from the top of the radiator grille.

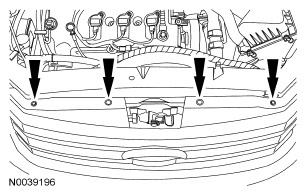

    Fig 3: Locating Pin-Type Retainers From Top Of Radiator Grille Bolts
    G04683806Courtesy of FORD MOTOR CO.

    7. All vehicles

  7. If equipped, disconnect the fog lamp electrical connectors.
  8. Remove the front bumper cover.
  9. To install, reverse the removal procedure.
