Section 1768 (Fuel Tank & Lines)
>>
Removal And Installation
>>
Fuel Lines - 2.3L
>>
Notes
Fuel Lines - 2.3L: Notes
WARNING:
This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

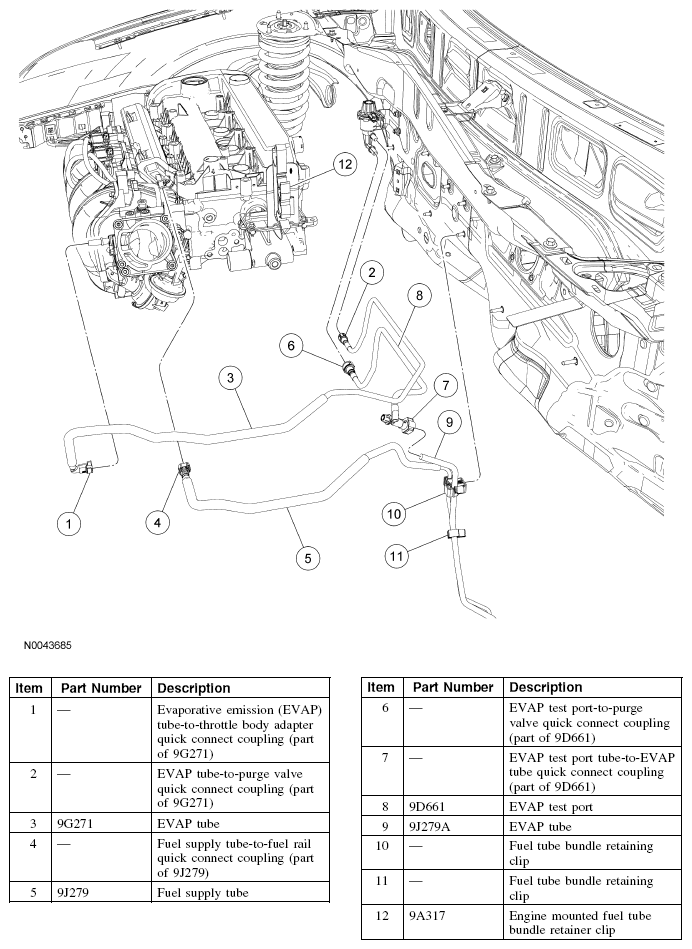

Fig 1: Identifying 2.3L Front Fuel Lines Components
Courtesy of FORD MOTOR CO.

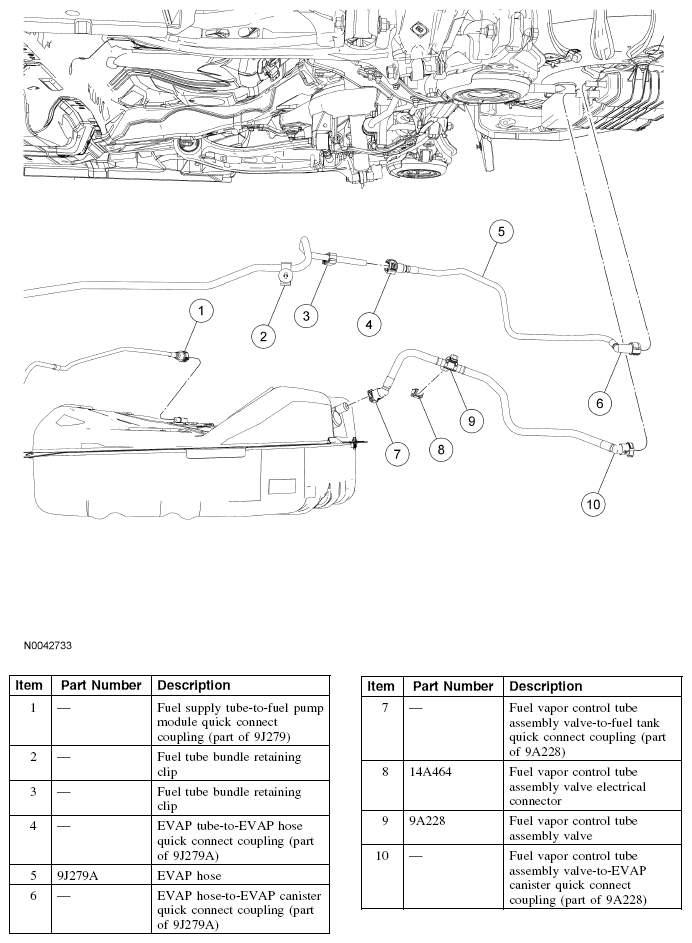

Fig 2: Identifying 2.3L Rear Fuel Lines Components
Courtesy of FORD MOTOR CO.
