Turbine Shaft Speed (TSS) Sensor: Notes

WARNING: This page is about a different car, the 2006 Mercury Milan and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL

Item Specification
Thread Sealant with PTFE TA-24 WSK-M2G350-A2

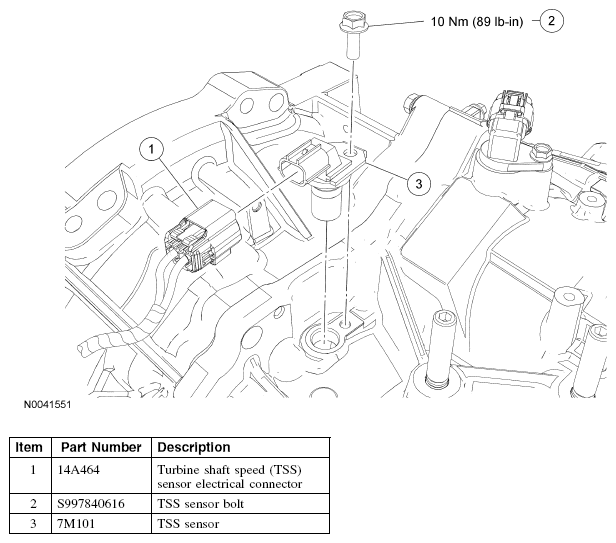

Fig 1: Turbine Shaft Speed (TSS) Sensor With Torque Specifications
G04681807Courtesy of FORD MOTOR CO.
