Install new O-rings on the transmission-mounted fluid cooler tubes.

Fig 1: Locating O-Rings
Courtesy of FORD MOTOR CO.
Install the transmission-mounted fluid cooler tubes.
- Tighten to 10 Nm (89 lb-in).

  Fig 2: Locating Bolts
  Courtesy of FORD MOTOR CO.
Position the transmission fluid cooler tubes in place and install the retainer.

Fig 3: Locating Transmission Fluid Cooler Tubes Retainers
Courtesy of FORD MOTOR CO.
Install the transmission fluid cooler tubes in the retainers.

Fig 4: Locating Transmission Fluid Cooler Tubes Retainers
Courtesy of FORD MOTOR CO.

NOTE: The power steering hose is routed between the 2 transmission fluid cooler hoses.

Fig 5: Locating Transmission Fluid Cooler Hoses

Courtesy of FORD MOTOR CO.

Position the transmission fluid cooler hoses in place.

CAUTION: Use care not to over stretch or extend the hose clamps.

CAUTION: The hose clamps are held on the hose with a special epoxy. Damage may occur to the hose if the clamp is removed from the hose. If the clamp or hose is damaged, replace the entire fluid cooler tube.

Fig 6: Locating Hose Clamps

Courtesy of FORD MOTOR CO.

Connect the transmission fluid cooler hoses to the transmission-mounted fluid cooler tubes.
Install the lower transmission fluid cooler tube in the radiator.
- Tighten to 30 Nm (22 lb-ft).

  Fig 7: Locating Lower Transmission Fluid Cooler Tube
  Courtesy of FORD MOTOR CO.
Install the front splash shield.
1. Position the splash shield in place and install the 2 screws.
2. Install the fasteners.
3. Install the 4 bolts.

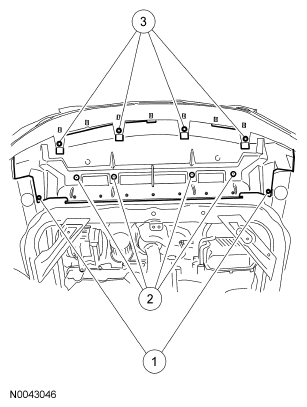

  Fig 8: Identifying Front Splash Shield Screws, Bolts And Retainers
  Courtesy of FORD MOTOR CO.
If equipped, install the 7 bolts and the splash shield.

Fig 9: Locating Underbody Cover Screws
Courtesy of FORD MOTOR CO.
Install the upper transmission fluid cooler tube in the radiator.
- Tighten to 30 Nm (22 lb-ft).

  Fig 10: Locating Upper Transmission Fluid Cooler Tube
  Courtesy of FORD MOTOR CO.
Remove the fluid fill plug.

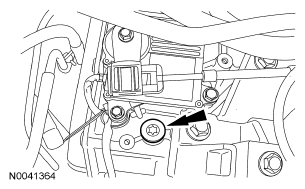

Fig 11: Locating Fluid Fill Plug
Courtesy of FORD MOTOR CO.

NOTE: Transmission fluid level at normal operating temperature is between the top 2 marks on the fluid level indicator.

Fig 12: Locating Temperature Marks On Fluid Level Indicator

Courtesy of FORD MOTOR CO.

Check the transmission fluid level and add automatic transmission fluid as necessary.
Install the fluid fill plug.
- Tighten to 39 Nm (29 lb-ft).

  Fig 13: Locating Fluid Fill Plug
  Courtesy of FORD MOTOR CO.
