WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S) DESCRIPTION
Courtesy of FORD MOTOR CO.
Heavy Duty Riveter 501-D011 (D80L-23200-A) or equivalent

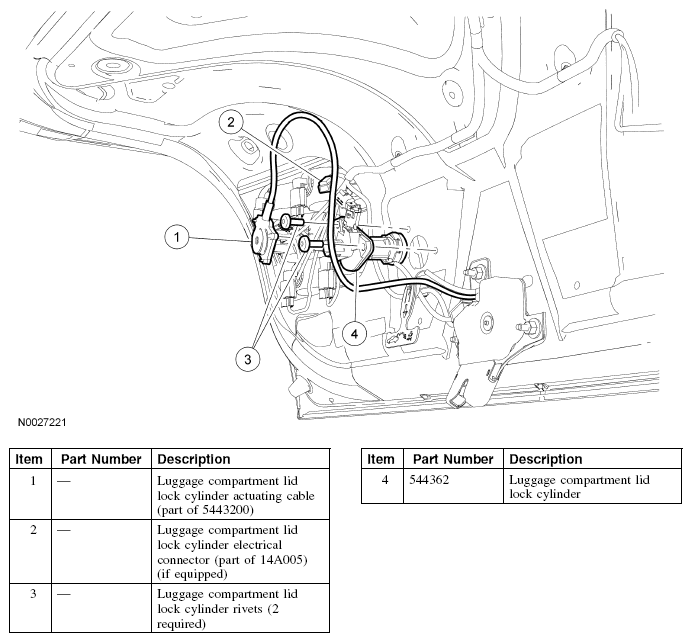

Fig 1: Identifying Luggage Compartment Lid Lock Cylinder Components
