Seat Backrest Latch - Rear: Notes

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown, RH side similar.

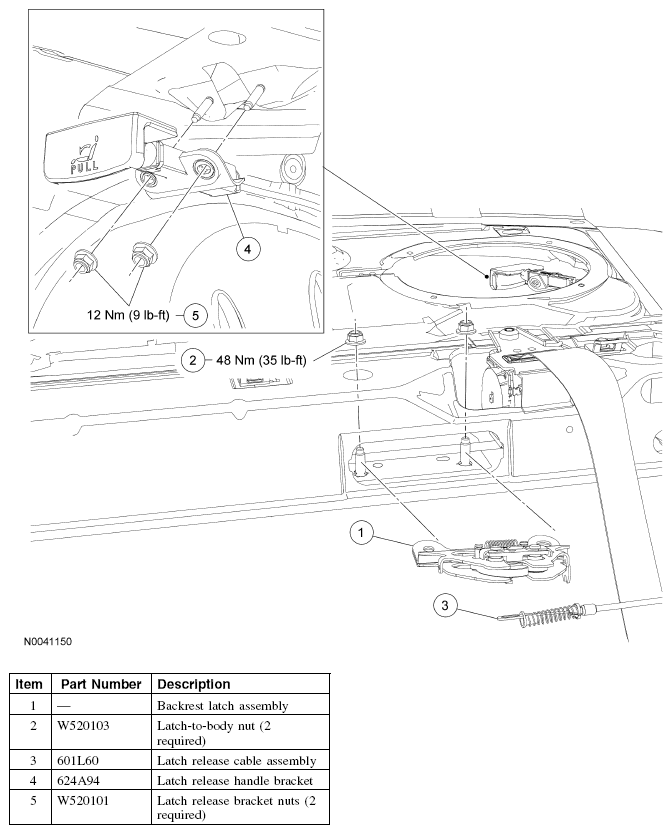

Fig 1: Rear Seat Backrest Latch Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.
