Brake Fluid Reservoir: Notes

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS

Item Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 (Canada CPM-1) ESA-M6C25-A
NOTE: Automatic transmission shown, manual transmission similar.

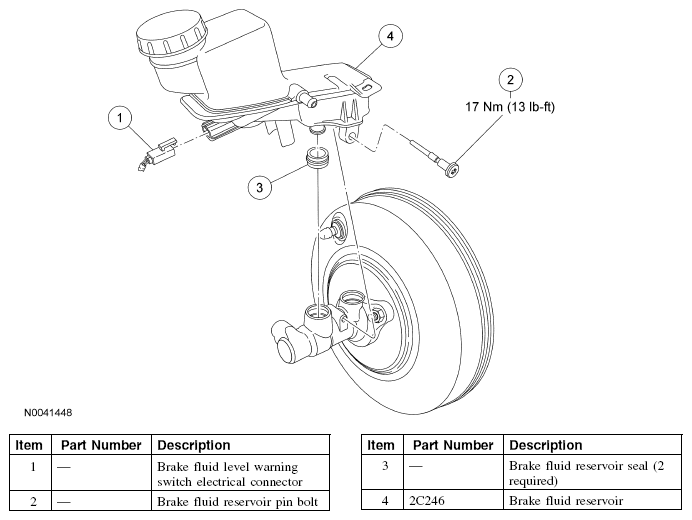

Fig 1: Identifying Brake Fluid Reservoir, Brake Fluid Reservoir Pin Bolt And Brake Fluid Reservoir Seal
G04679806Courtesy of FORD MOTOR CO.
