Halfshaft Seal: Notes

WARNING: This page is about a different car, the 2006 Mercury Milan and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S)

G04682099Courtesy of FORD MOTOR CO.
Installer, Output Shaft Seal
308-597 or equivalent
G04682100Courtesy of FORD MOTOR CO.
Remover, Stator Case Bearing
307-163 (T86P-70043-A)
G04682101Courtesy of FORD MOTOR CO.
Slide Hammer
100-001 (T50T-100-A)

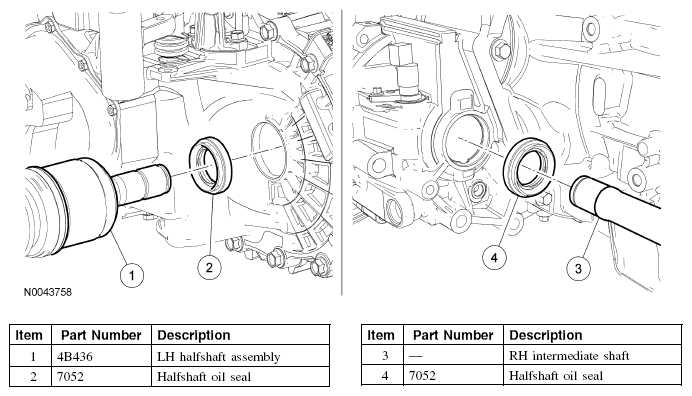

Fig 1: Identifying Halfshaft Seal Components
G04682102Courtesy of FORD MOTOR CO.
