Accessory Drive

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

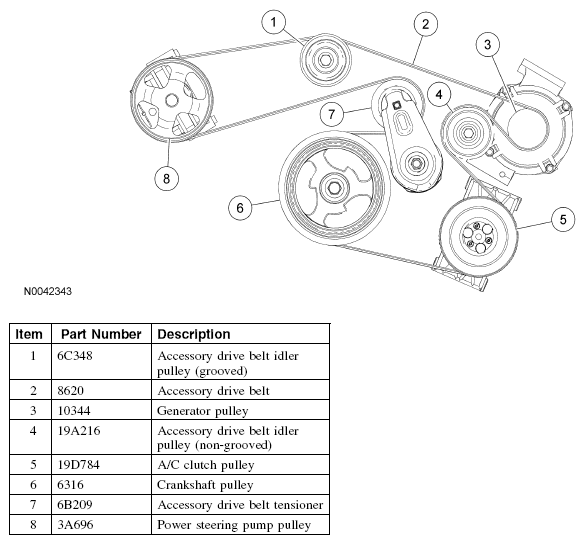

Fig 1: Identifying Front Engine Accessory Drive Belt Routing & Components

Fig 2: Identifying Rear Engine Accessory Drive Belt Routing & Components

This vehicle is equipped with:

A V-ribbed serpentine accessory drive belt.
An automatic drive belt tensioner.
A V-ribbed coolant pump belt.

New drive belts must be of the same type as originally installed.

Check the drive belt condition at 160,000 km (100,000 miles) then after every 24,000 km (15,000 miles).
