Accessory Drive Belt Routing & Component Identification

WARNING: This page is about a different car, the 2006 Mercury Milan and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

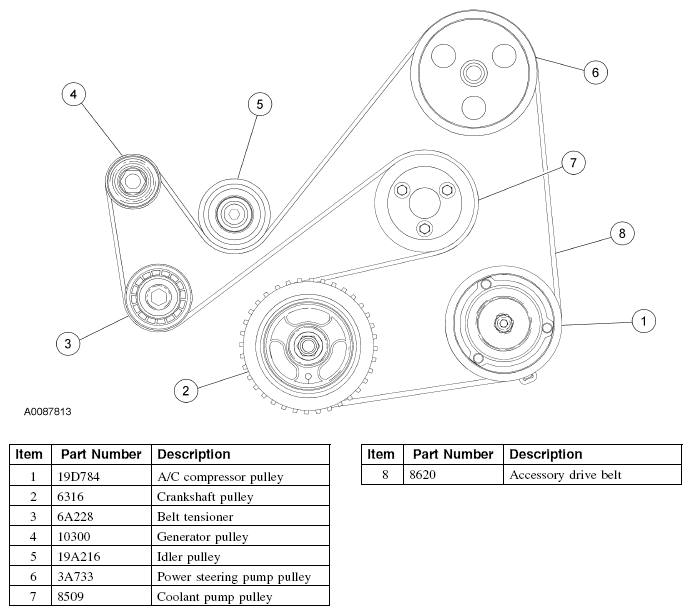

Fig 1: Identifying Accessory Drive Components
G04681268Courtesy of FORD MOTOR CO.
