Valve Cover - LH: Notes

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL

Item	Specification
Motorcraft Metal Surface Cleaner ZC-21	WSE-M5B392-A
Silicone Gasket and Sealant TA-30	WSE-M4G323-A4

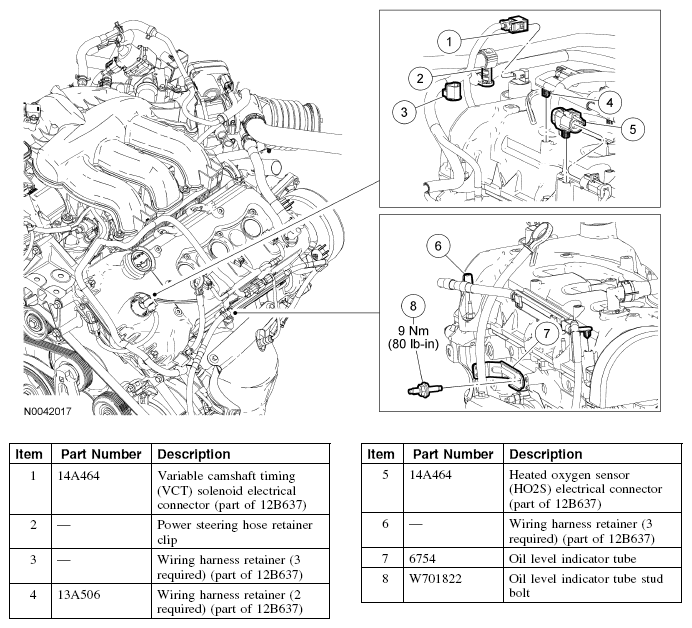

Fig 1: Valve Cover - LH Replacement Components (Items 1--8) With Torque Specifications

Courtesy of FORD MOTOR CO.

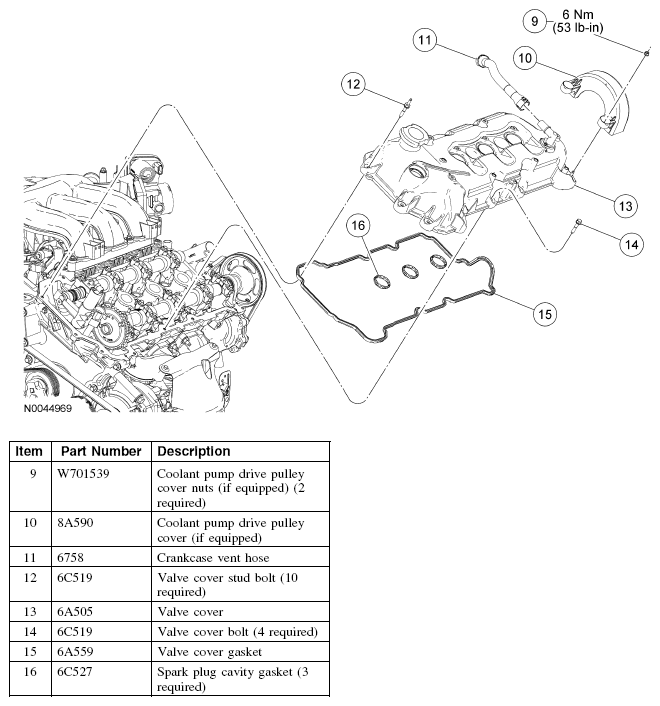

Fig 2: Valve Cover - LH Replacement Components (Items 9--16) With Torque Specifications

Courtesy of FORD MOTOR CO.
