Upper Intake Manifold: Notes

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

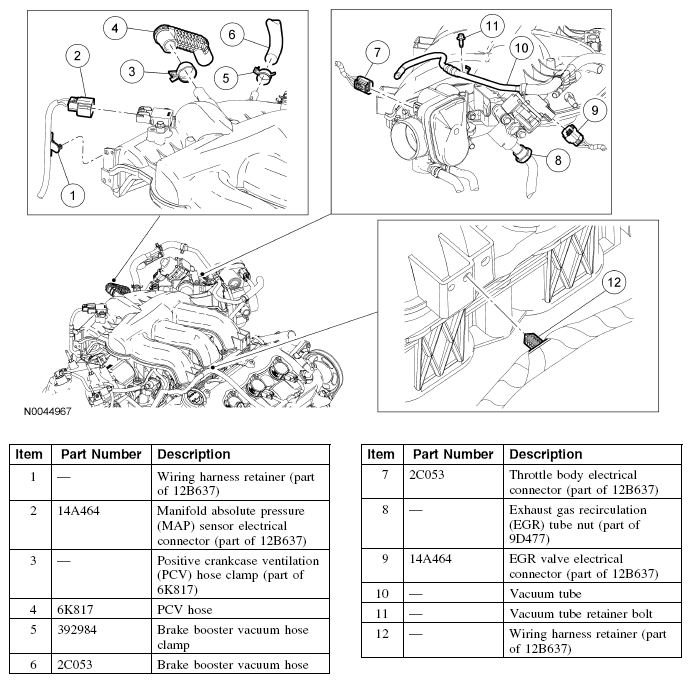

Fig 1: Identifying Upper Intake Manifold Components (Items 1-12)

Courtesy of FORD MOTOR CO.

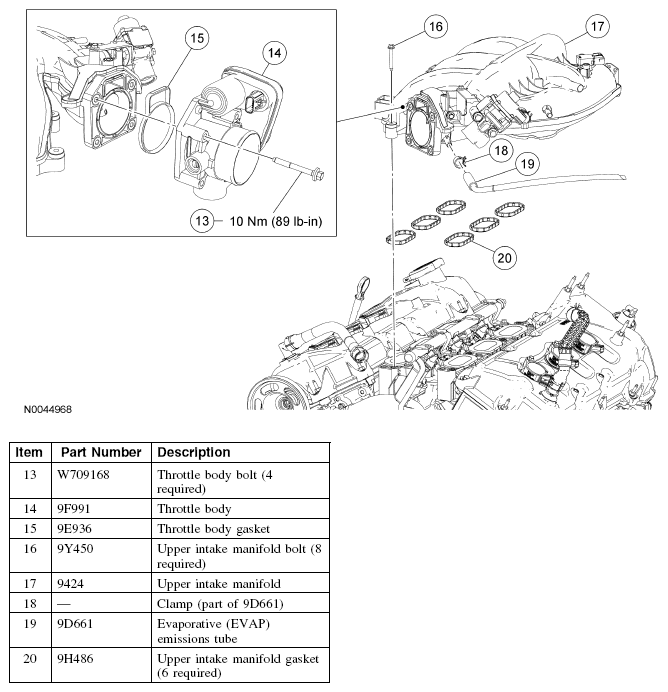

Fig 2: Upper Intake Manifold Replacement Components (Items 13--20) With Torque Specifications

Courtesy of FORD MOTOR CO.
