Timing Drive Components: Removal

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

CAUTION: Failure to verify correct timing drive component alignment will result in severe engine damage.

Remove the engine front cover. For additional information, refer to ENGINE FRONT COVER .

CAUTION: This pulse wheel is used in several different engines. Install the pulse wheel with the keyway in the slot stamped 30RFF (orange in color).

Fig 1: Identifying Ignition Pulse Wheel

Courtesy of FORD MOTOR CO.

Remove the ignition pulse wheel.
Install the crankshaft pulley bolt and washer.

Fig 2: Identifying Damper Bolt
Courtesy of FORD MOTOR CO.

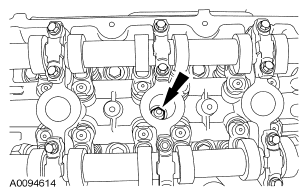

Remove the 6 spark plugs

Fig 3: Locating Spark Plugs
Courtesy of FORD MOTOR CO.

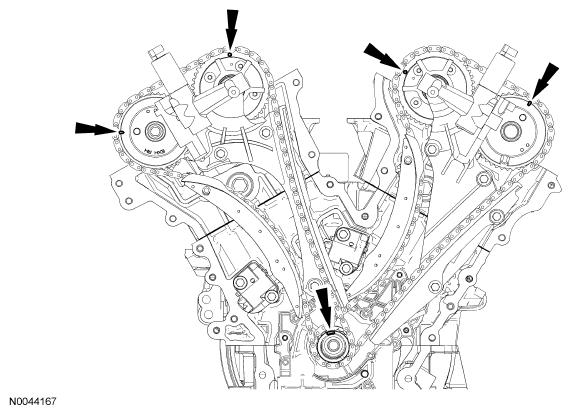

Rotate the crankshaft clockwise to position the crankshaft keyway in the 11 o'clock position and position the camshafts in the correct position. This will position the No. 1 cylinder at top dead center (TDC).
- Verify that the camshafts are correctly located. If not, rotate the crankshaft one additional turn and recheck.

  Fig 4: Locating Crankshaft Keyway Position
  Courtesy of FORD MOTOR CO.
Rotate the crankshaft clockwise 120 degrees to the 3 o'clock position to position the RH camshafts in the neutral position.

Fig 5: Identifying Crankshaft Keyway
Courtesy of FORD MOTOR CO.
Verify that the RH camshafts are in the neutral position.

Fig 6: Locating RH Camshafts In Neutral Position
Courtesy of FORD MOTOR CO.
Remove the RH timing chain tensioner arm.
1. Remove the 2 bolts.
2. Remove the tensioner.
3. Remove the tensioner arm.

  Fig 7: Identifying RH Timing Chain Tensioner Arm, Bolts And Tensioner
  Courtesy of FORD MOTOR CO.

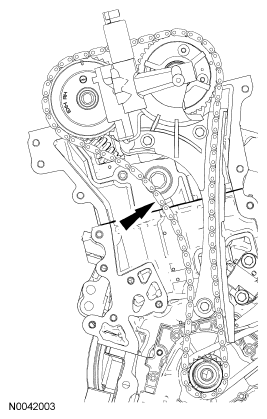

Remove the RH timing chain.

Fig 8: Locating RH Timing Chain
Courtesy of FORD MOTOR CO.

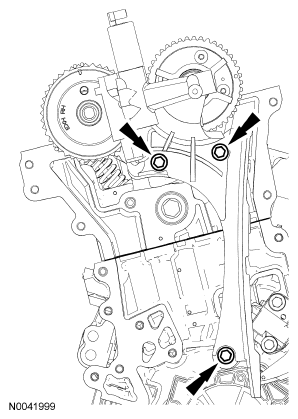

Remove the 3 bolts and the RH VCT assembly.

Fig 9: Locating RH VCT Assembly Bolts
Courtesy of FORD MOTOR CO.
Rotate the crankshaft clockwise 600 degrees (1-2/3 turns) to position the crankshaft keyway in the 11 o'clock position. This will position the LH camshafts in the neutral position.

Fig 10: Positioning Crankcase Key Way In 11 O'Clock Position
Courtesy of FORD MOTOR CO.
Verify the LH camshafts are in the neutral position.

Fig 11: Locating LH Camshafts In Neutral Position
Courtesy of FORD MOTOR CO.
Remove the LH timing chain tensioner and tensioner arm.
1. Remove the 2 bolts.
2. Remove the tensioner.
3. Remove the tensioner arm.

  Fig 12: Identifying LH Timing Chain Tensioner Arm, Bolts And Tensioner
  Courtesy of FORD MOTOR CO.

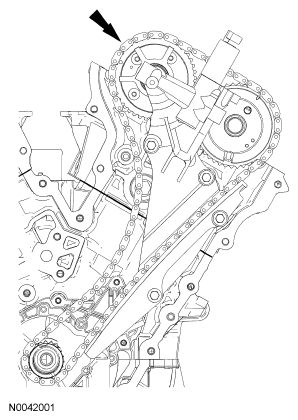

Remove the LH timing chain.

Fig 13: Locating LH Timing Chain
Courtesy of FORD MOTOR CO.

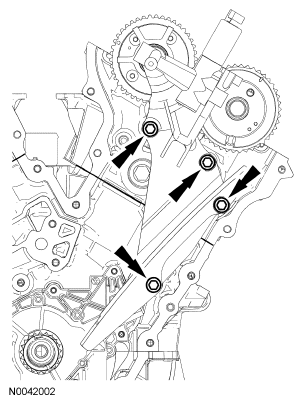

Remove the 4 bolts and the LH VCT assembly.

Fig 14: Identifying LH VCT Assembly Bolts
Courtesy of FORD MOTOR CO.
Remove the pulley bolt, washer and the crankshaft sprocket.

Fig 15: Locating Damper Bolt & Crankshaft Sprockets
Courtesy of FORD MOTOR CO.
