Oil Pump: Installation

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the oil pump and install the 4 bolts.
    • Tighten in the sequence shown to 10 Nm (89 lb-in).

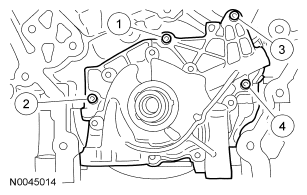

      Fig 1: Identifying Tightening Sequence Of Oil Pump Bolts
      G04680775Courtesy of FORD MOTOR CO.
  2. Install the oil pump screen and pickup tube. For additional information, refer to OIL PUMP SCREEN AND PICKUP TUBE .
  3. Install the timing drive components. For additional information, refer to TIMING DRIVE COMPONENTS .
