Oil Pump Screen and Pickup Tube: Installation

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Lubricate the O-ring seal with clean engine oil.
  1. Install a new O-ring seal on the oil pump screen and pickup tube.
  2. Install the oil pump screen and pickup tube and the 2 bolts.
    • Tighten to 10 Nm (89 lb-in).

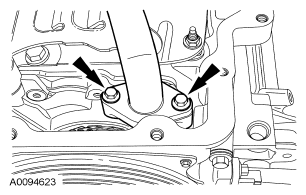

      Fig 1: Locating Oil Pump Screen And Pickup Tube Bolts
      G04680773Courtesy of FORD MOTOR CO.
  3. Install the oil pan. For additional information, refer to OIL PAN .
