Engine Mount: Notes

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S)

G04680779Courtesy of FORD MOTOR CO.
3-Bar Engine Support Kit
303-F072
G04680780Courtesy of FORD MOTOR CO.
Lifting Brackets, Engine
303-050 (T70P-6000)
G04680781Courtesy of FORD MOTOR CO.
Universal Adapter Brackets
014-0001

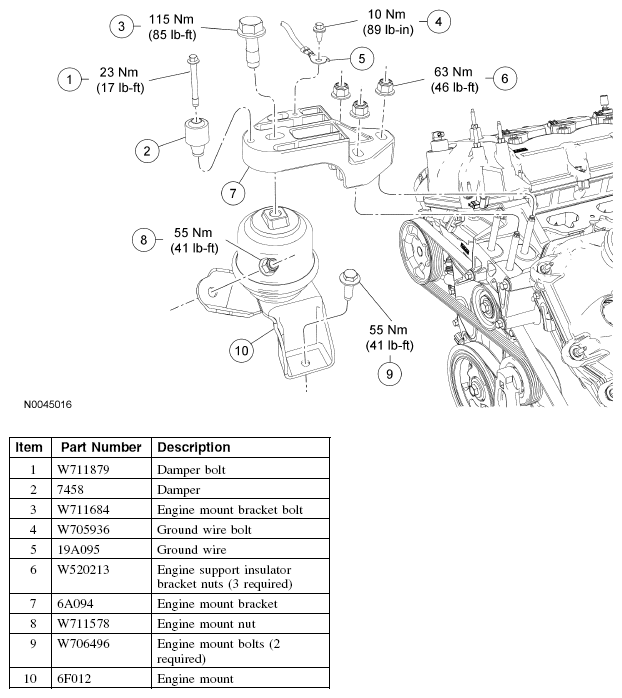

Fig 1: Engine Mount Replacement Components With Torque Specifications
G04680782Courtesy of FORD MOTOR CO.
