WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

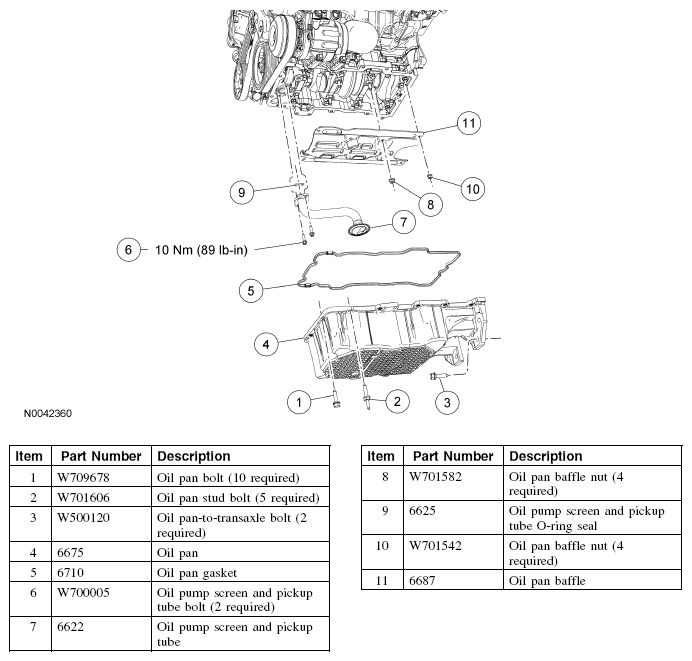

Fig 1: Exploded View Of Oil Pan, Oil Pump Screen And Pickup Tube And Oil Pan Baffle With Torque Specifications
Courtesy of FORD MOTOR CO.

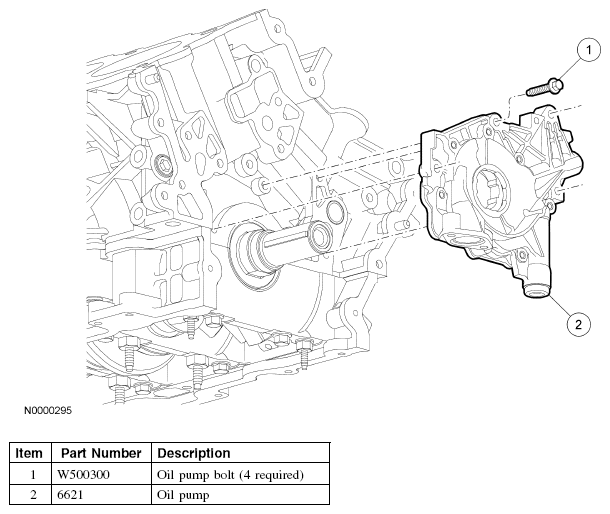

Fig 2: Exploded View Of Oil Pump
Courtesy of FORD MOTOR CO.
For additional information, refer to the appropriate procedure.
