Engine Front Cover: Notes

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL

Item Specification
Motorcraft Metal Surface Cleaner ZC-21 WSE-M5B392-A
Silicone Gasket and Sealant TA-30 WSE-M4G323-A4
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (in Canada Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12) or equivalent WSS-M2C930-A

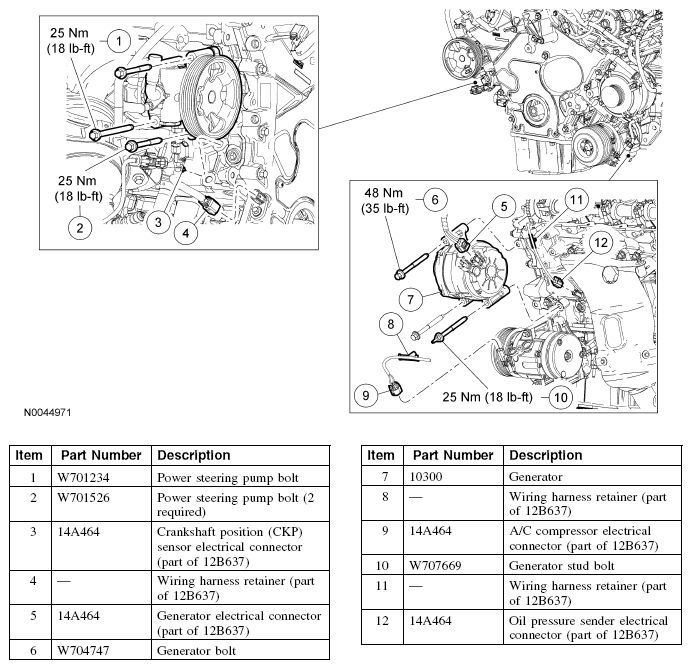

Fig 1: Engine Front Cover Replacement Components (Items 1--12) With Torque Specifications
G04680677Courtesy of FORD MOTOR CO.

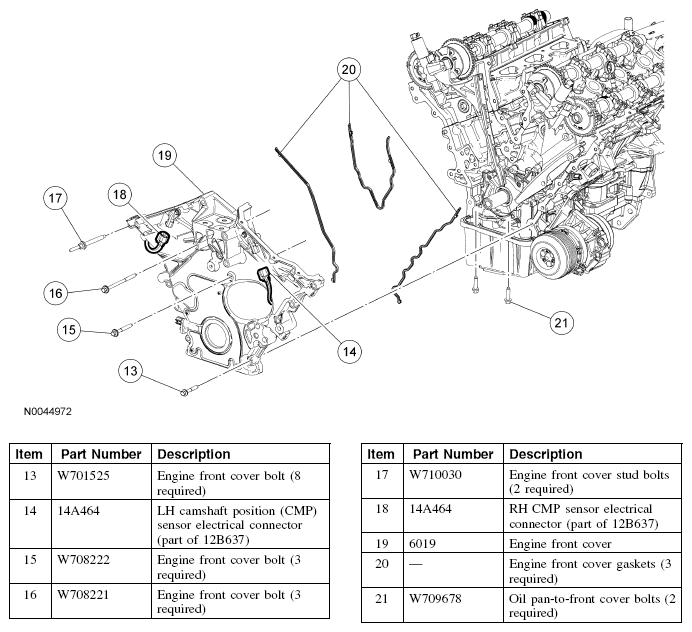

Fig 2: Identifying Engine Front Cover Components (Items 13-21)
G04680678Courtesy of FORD MOTOR CO.
