Crankshaft Pulley: Removal

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the accessory drive belt. For additional information, refer to ACCESSORY DRIVE - 3.0L (4V) .
  3. Use the special tool to hold the crankshaft pulley and remove the crankshaft pulley bolt and washer.

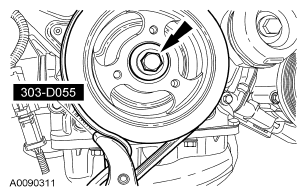

    Fig 1: Locating Special Tool And Crankshaft Pulley Bolt
    G04680660Courtesy of FORD MOTOR CO.
  4. Using the special tool, remove the crankshaft pulley.
    Fig 2: Identifying Special Tool And Crankshaft Pulley
    G04680661Courtesy of FORD MOTOR CO.
