Camshafts - LH: Removal

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the timing drive components. For additional information, refer to TIMING DRIVE COMPONENTS .
  2. Cut and discard the coolant pump belt.
    Fig 1: Locating Coolant Pump Belt
    G04680724Courtesy of FORD MOTOR CO.
  3. Using the special tools, remove the coolant pump drive pulley from the camshaft.
    Fig 2: Identifying Special Tools (303-S455 And 303-009) And Coolant Pump Drive Pulley
    G04680725Courtesy of FORD MOTOR CO.
  4. NOTE: To make sure of correct sealing, do not scratch the camshaft.
    Fig 3: Identifying Special Tools (303-409)
    G04680726Courtesy of FORD MOTOR CO.
  5. Using the special tools, remove and discard the camshaft oil seal.
  6. Remove the 2 bolts and the camshaft oil seal retainer.
    • Discard the press-in-place gasket.
      Fig 4: Locating Camshaft Oil Seal Retainer And Bolts
      G04680727Courtesy of FORD MOTOR CO.
  7. CAUTION: The camshafts must be in the neutral position before removing the bearing caps.
    Fig 5: Locating Camshafts In Neutral Position
    G04680728Courtesy of FORD MOTOR CO.
  8. Verify the camshafts are in the neutral position.
  9. CAUTION: Do not allow the camshaft to rotate from the neutral position while removing the variable camshaft timing (VCT) actuator.
    NOTE: Install a 3/8-in ratchet and extension into the D-slot on the rear of the intake camshaft to hold the camshaft in place for removal of the VCT actuator bolt.

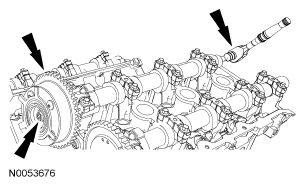

    Fig 6: Locating Bolt And Variable Camshaft Timing (VCT) Actuator
    G04680729Courtesy of FORD MOTOR CO.
  10. Remove the bolt and the variable camshaft timing (VCT) actuator.
  11. CAUTION: Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions. If the numbers cannot be seen, mark the camshaft bearing caps prior to removing them.
    CAUTION: After loosening all of the camshaft bearing cap bolts, remove the camshaft bearing thrust caps (1L and 6L) first, or damage to the thrust caps may occur.
  12. Loosen the bolts evenly in the sequence shown.
    1. Remove the camshaft bearing thrust caps (1L and 6L).
    2. Remove the remaining camshaft bearing caps.
    3. Remove the camshafts from the cylinder head.

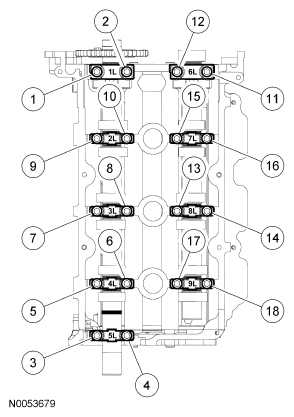

      Fig 7: Identifying Loosening Sequence Of Camshaft Bearing Bolts
      G04680730Courtesy of FORD MOTOR CO.
