Camshafts - LH: Notes

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S)

G04680716Courtesy of FORD MOTOR CO.
 Service Set, Water Pump Pulley
303-S455 (T94P-6312-AH)
G04680717Courtesy of FORD MOTOR CO.
 Remover, Crankshaft Vibration Damper
303-009 (T58P-6316-D)
G04680718Courtesy of FORD MOTOR CO.
 Remover, Oil Seal
303-409 (T92C-6700-CH)
G04680719Courtesy of FORD MOTOR CO.
 Installer, Camshaft Oil Seal
303-464 (T94P-6256-BH)
G04680720Courtesy of FORD MOTOR CO.
 Protector, Camshaft Oil Seal
303-463 (T94P-6256-AH)
G04680721Courtesy of FORD MOTOR CO.
 Installer, Power Steering Pump Pulley
211-185 (T91P-3A733-A)
MATERIAL

Item Specification
Motorcraft Metal Surface Cleaner ZC-21 WSE-M5B392-A
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent WSS-M2C930-A

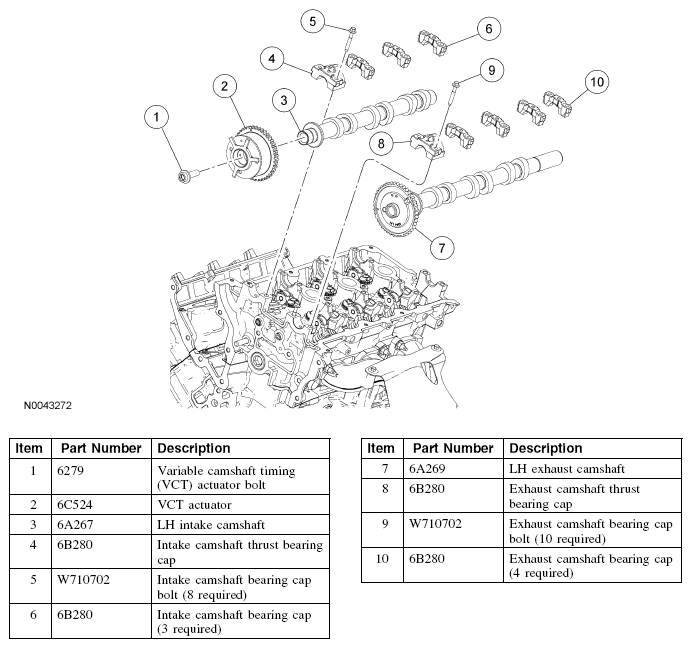

Fig 1: Identifying Camshaft - LH Components (Items 1-10)
G04680722Courtesy of FORD MOTOR CO.

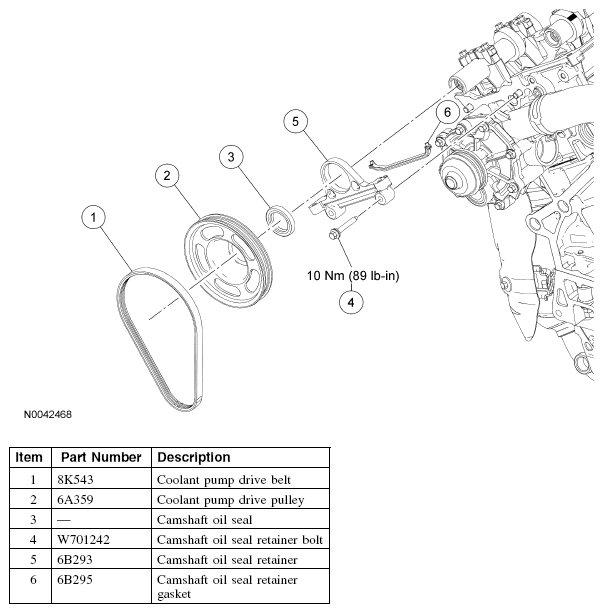

Fig 2: Camshaft - LH Replacement Components (Items 1--6) With Torque Specifications
G04680723Courtesy of FORD MOTOR CO.
