Camshafts - LH: Installation

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the VCT actuator onto the intake camshaft.
    • Install the bolt finger-tight.
      Fig 1: Locating VCT Actuator And Bolt
      G04680731Courtesy of FORD MOTOR CO.
    2. CAUTION: The camshafts must be installed in the neutral position.
  2. Lubricate the camshafts with clean engine oil and carefully position the camshafts into the cylinder head.
    • Align the camshafts in the neutral position as shown.
      Fig 2: Locating Camshafts Keyway In Neutral Position
      G04680732Courtesy of FORD MOTOR CO.
    3. CAUTION: The camshaft caps must be installed in their original positions or damage to the engine may occur.
    CAUTION: Do not install the camshaft bearing thrust caps until all of the camshaft bearing caps have been installed, or damage to the thrust caps may occur.
    NOTE: Lubricate the bearing surfaces of the camshaft bearing caps with clean engine oil.
  3. Install the camshaft bearing caps.
    • Loosely install the bolts.

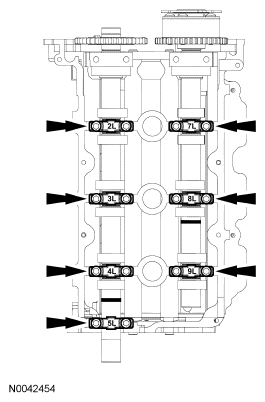

      Fig 3: Locating Camshaft Bearing Caps
      G04680733Courtesy of FORD MOTOR CO.
    4. NOTE: Lubricate the bearing surfaces of the camshaft bearing thrust caps with clean engine oil.
  4. Install the camshaft bearing thrust caps.
    • Loosely install the bolts.

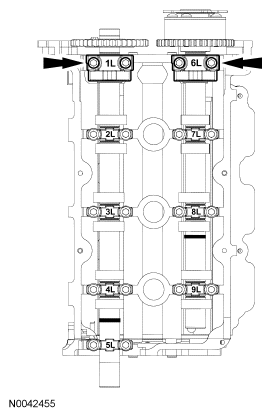

      Fig 4: Locating Camshaft Bearing Thrust Caps
      G04680734Courtesy of FORD MOTOR CO.
  5. Tighten the camshaft bearing cap bolts in the sequence shown to 10 Nm (89 lb-in).

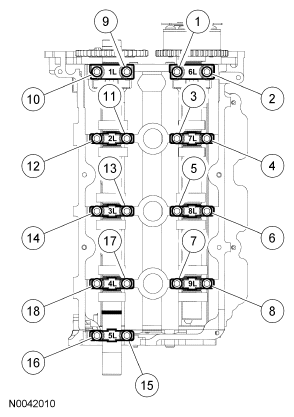

    Fig 5: Identifying Tightening Sequence Camshaft Bearing Cap Bolts
    G04680735Courtesy of FORD MOTOR CO.
    6. CAUTION: Do not allow the camshaft to rotate from the neutral position while tightening the VCT actuator bolt.
    NOTE: Install a 3/8-in ratchet and extension into the D-slot on the rear of the intake camshaft to hold the camshaft in place for tightening of the VCT actuator bolt.

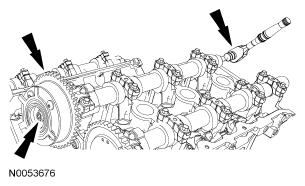

    Fig 6: Locating VCT Actuator Bolt
    G04680736Courtesy of FORD MOTOR CO.
  6. Tighten the VCT actuator bolt to 40 Nm (30 lb-ft) plus an additional 90 degrees.
    7. NOTE: Clean the sealing surface with metal surface cleaner before installing a new press-in-place gasket.
  7. Install the camshaft oil seal retainer and the 2 bolts.
    • Tighten to 10 Nm (89 lb-in).
      Fig 7: Locating Camshaft Oil Seal Retainer And Bolts
      G04680737Courtesy of FORD MOTOR CO.
    8. NOTE: Apply clean engine oil to the seal lip and seal bore before installing the seal.
    Fig 8: Identifying Special Tools (303-463, 303-464 And 211-185)
    G04680738Courtesy of FORD MOTOR CO.
  8. Using the special tools, install a new camshaft oil seal.
    9. CAUTION: The pulley is pressed on flush to the end of the camshaft.
    Fig 9: Identifying Special Tool (211-185 And 303-S455)
    G04680739Courtesy of FORD MOTOR CO.
  9. Using the special tool, install the coolant pump drive pulley.
  10. Install the timing drive components. For additional information, refer to TIMING DRIVE COMPONENTS .
  11. Install the coolant pump belt. For additional information, refer to ACCESSORY DRIVE - 3.0L (4V) .
