Oil Pump: Removal

WARNING: This page is about a different car, the 2006 Mercury Milan and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the engine in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the engine front cover. For additional information, refer to ENGINE FRONT COVER .
  3. Drain the engine oil, then install the drain plug.
    • To install, tighten to 28 Nm (21 lb-ft).
  4. Remove the 3 oil pan-to-bellhousing bolts.
  5. Remove the 13 bolts and the oil pan.
    6. NOTE: Discard the gasket and clean and inspect the gasket mating surfaces.
  6. Remove the 2 bolts and the oil pump screen and pickup tube.
    • To install, tighten to 10 Nm (89 lb-in).
  7. Remove the oil pump chain tensioner and guide.
    1. Release the tension on the tensioner spring.
    2. Remove the 2 shoulder bolts and the tensioner.
    3. Remove the 2 shoulder bolts and the guide.

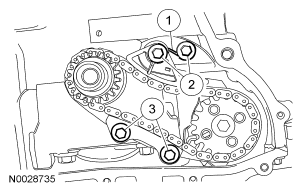

      Fig 1: Removing Tensioner And Guide Bolts
      G04680120Courtesy of FORD MOTOR CO.
  8. Remove the chain from the oil pump sprocket.
  9. Remove the bolt and oil pump sprocket.
  10. Remove the 4 bolts and the oil pump.
